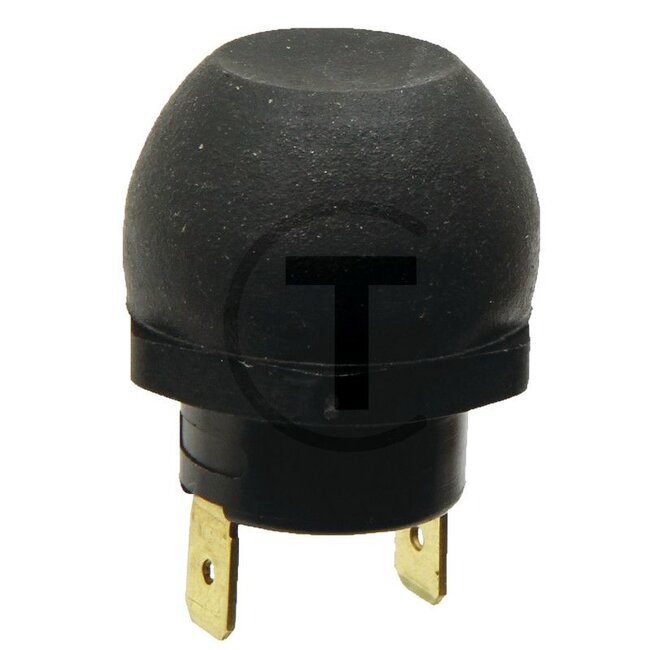

Push button switch Black button
| Article number | 4556JF 001571161 |
|---|---|
| EAN | 4082300190847 |
| Weight | 17 g |
| Version | For horn, 2 blade terminals 6.3 mm, 2 screw connections, for wall thickness up to max. 5 mm, moisture-proof |
| Power rating max. 12 V | 16A |
| Power rating max. 24 V | 8A |
| To operate | Operated by pressing |

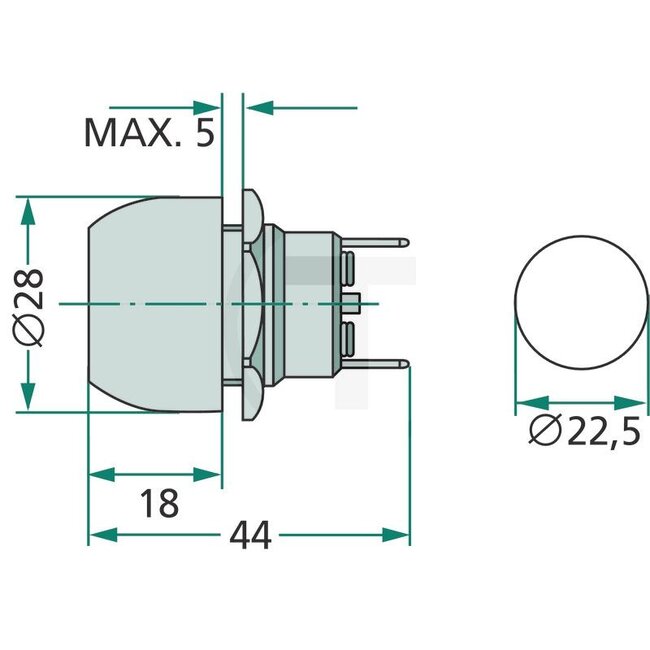

| Hole Ø | 22.5 mm |
| Switching function | Make contact |
| Thickness | 5 mm |
| Additional information | • With splash guard • With plug |
| Mounting type | Bolted |
| Connections | 2 |
Suitable for:
Suitable for:
John Deere: 1630VU, 2030, 1035 (nur für Spanien), 1635 (nur für Spanien), 2035 (nur für Spanien), 2135 (nur für Spanien), 3135 (nur für Spanien)
