HELLA Push button switch Black button - 4556JF 001571041, 060509204, 6JF001571-041, 6JF 001 571-041, AL17684, AL17355, AT27731, 5127282, X830240020000, 0009730808 | Version: For engine start and horn, moisture-proof push button, 2 blade terminals 6.3 mm, black
€13,43
€12,49Incl. VAT
In stock
€10,32
Excl. VAT
Version: For engine start and horn, moisture-proof push button, 2 blade terminals 6.3 mm, black push button, for wall thickness up to max. 5 mm, short-term power rating: 20 A at 12 V, 15 A at 24 V. Colour: Black. Power rating max. 12 V: max. 20 kurzzeitig
Read more.
40.000+ technical products
Worldwide shipping*
30-day return policy
Rating 9.0/10 (491 reviews)
Larger quantity required?
Product description

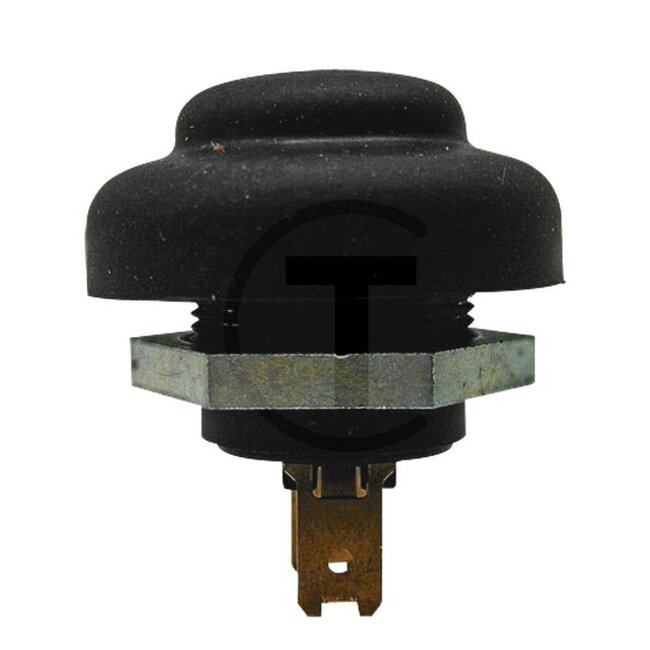

Push button switch Black button
Version: For engine start and horn, moisture-proof push button, 2 blade terminals 6.3 mm, black push button, for wall thickness up to max. 5 mm, short-term power rating: 20 A at 12 V, 15 A at 24 V
Colour: Black
Power rating max. 12 V: max. 20 kurzzeitig
Power rating max. 24 V: max. 15 kurzzeitig
To operate: Operated by pressing

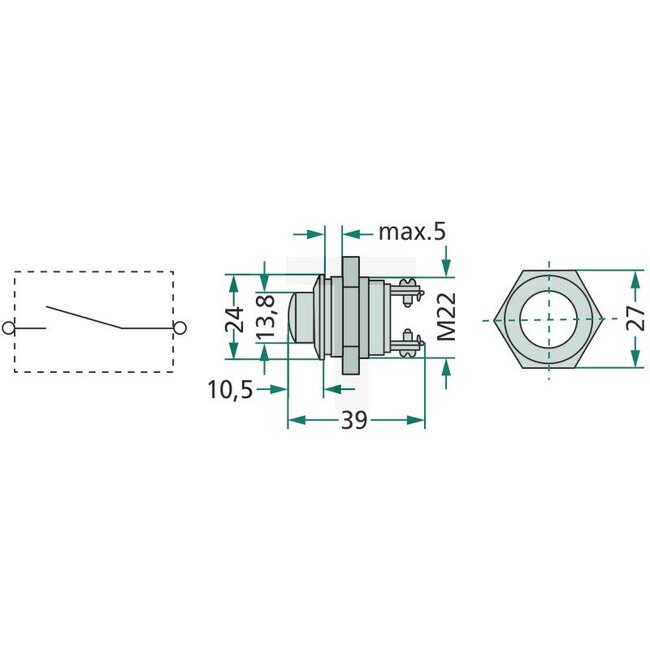

Hole Ø (mm): 22.3
Size (mm): 6,3
Switches: Make contact
Function: For engine start and horn
Additional information: • With plug • Moisture-proof push button
Mounting type: Bolted
for wall thickness (mm): 5
Connections: 2
Passend voor:
John Deere: 6JF 001 571-041, AL17684, AL17355, AT27731, Serie 20, 820, 920, 1020, 1120, 2020, 2120, 3120, 5520N, Serie 30, 830, 930, 1030, 1130, 1630, 1830, 2030, 2130, 3130, Serie 35, 1035 (nur für Spanien), 1635 (nur für Spanien), 2035 (nur für Spanien), 2135 (nur für Spanien), 3135 (nur für Spanien), Serie 40, 1040, 1140, 1640, 1840, 2040, 2140, 3040, 3140, 3640, Serie 50, 1350, 1550, 1750, 1850, 1950, 2250, 2450, 2650, 2850, 3050, 3150, 3350, 3650, Serie 5020/5020N, 5320N, 5420N, Serie 7000, 7200, 7300, 7400, 7500, 7700, 7800, Serie 7050, 7250, 7350, 7450, 7550, 7750, 7850, 7950, Serie C, C 670, Serie T, T550, T560, T660, T670, Serie W, W540, W550, W650, W660
New Holland: 6JF 001 571-041, 5127282, Serie TN, TN55, TN60, TN65, TN70, TN75, TN80, TN85, TN90, TN95
Case IH: 6JF 001 571-041, 060509204, Serie CF, CF 60, CF 70, CF 80
Fiat: 6JF 001 571-041, 5127282, Serie 46, 55-46, 60-46, 65-46, Serie 56, 55-56, 60-56, 70-56, Serie 66, 45-66, 45-66 S, 50-66, 50-66 S, 55-66, 56-66 S, 60-66, 60-66 F, 60-66 S, 65-66, 65-66 S, 70-66, 70-66 F, 70-66 LP, 70-66 S, 80-66, 80-66 F, 80-66 S, Serie 76, 60-76 F, 70-76 F, 70-76 LP, 70-76 V, 80-76 F, Serie 86, 55-86 F, 55-86 S V, 55-86 V, 62-86 F, 70-86 S V, 70-86 V, 72-86 F, 72-86 LP, 82-86 F, 82-86 LP, Serie 90, 70-90, 80-90, 115-90, 130-90, 140-90, 160-90, 180-90, Serie 94, 60-94, 65-94, 72-94, 82-94, 88-94, Serie TK, 55-65 F, 55-65 M, 55-65 V, 55-75 F, 55-75 M, 55-75 V, 55-85 F, 55-85 M, 55-85 V, 60-65, 60-65 M, 60-65 V, 60-75, 60-75 M, 60-75 V, 60-85 F, 60-85 V, 62-85, 62-85 M, 70-65, 70-65 M, 70-75, 70-75 M, 72-85, 72-85 M, 80-65, 80-75, 82-85, 85-55, 88-85, 95-55, 100-55, Serie Winner F100, F 100, F 110, F 115, F 120, F 130, F 140
Volvo CE / BM: 6JF 001 571-041, BM, BM 320 Buster, BM 350 Boxer, BM 400 Buster, BM 600 Boxer, T, T 400, T 430, T 600, T 650, T 700
