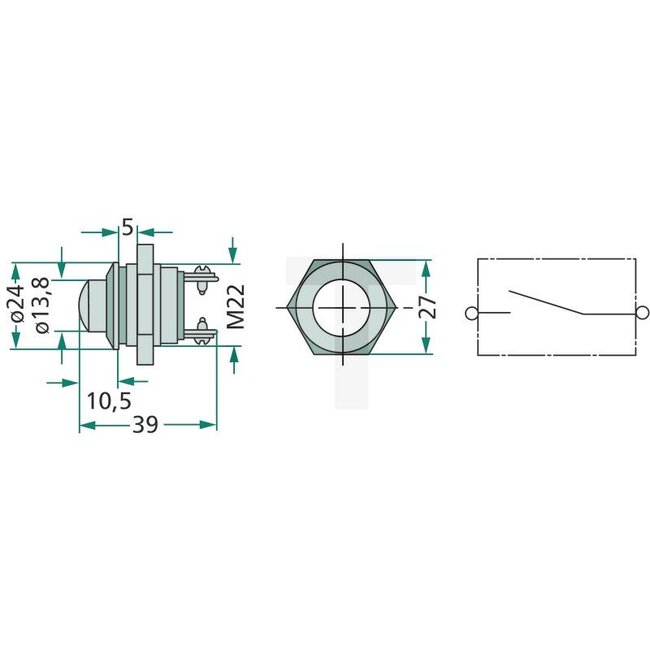

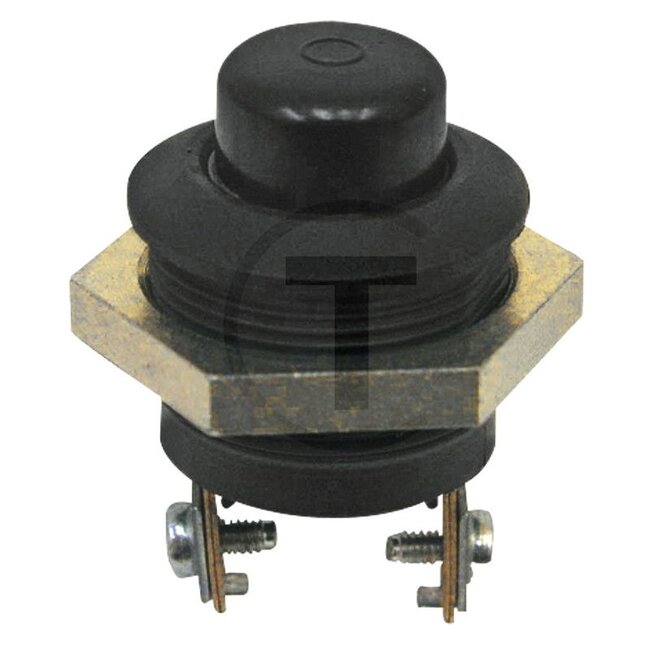

Push button switch for built-in mounting, black, with make contact and normally off position. The switch has 2 combined screw/blade terminal connections and is suitable for wall thickness up to max. 5 mm. Hole diameter 24 mm. Short-term power rating 20 A at 12 V and 15 A at 24 V. Operated by push button, screw mounting. Suitable for Linde.
Reference numbers:6JF 001 571-001, 0009730300
Diverse
| Article number | 4556JF 001571001 |
|---|---|
| EAN | 4082300190779 |
| Weight | 18 g |
| Version | For mounting, black push button, make contact, normally off, 2 combined screw/blade terminal connections, for wall thickness up to max. 5 mm, short-term power rating: 20 A at 12 V, 15 A at 24 V |
| Power rating max. 12 V | max. 20A Kurzzeitig |
| Power rating max. 24 V | max. 15A Kurzzeitig |
| To operate | Druckbetätigung |
| Hole Ø | 24 mm |
| Switching function | Schließer |
| Thickness | 5 mm |
| Mounting type | geschraubt |
| Connections | 2 |
| Voltage | 12 / 24 V |
