Blaupunkt Hamburg SQM 23 DAB radio

Replaces: 2001023000000

Technical data:

• ANALOGUE/DIGITAL RADIO Tuner type: Blaupunkt CODEM IV high-end automotive tuner Global tuner (switchable): EU, USA, South America, Thailand Frequency bands: FM, AM, DAB, DAB+ FM frequency band: 87.5 - 108 MHz AM frequency band: 531 - 1602/530 - 1710 kHz DAB/DAB+ channels (frequency band): 5A - 13F (174.928 - 239.200 MHz) Station memory number: 15x FM, 10x AM, 15x DAB Station memory levels FM1, FM2, FMT, AM, AMT, DAB1, DAB2, DAB3 Station memory levels can be deactivated FM2, FMT, AM, AMT, DAB2, DAB3 Station display (PS): yes Radio Text/Radio Text Plus (RT/RT+): yes/no DLS/ENSEMBLE/SERVICE display: yes/yes/yes Alternative frequency function (AF): yes Traffic information prioritisation (TA) FM/DAB: yes/yes Automatic time setting: yes Enhanced Other Networks (EON): no Regional function (REG): yes Programme type identification/search (PTY): yes (FM/DAB)/no Travel store/number of memory locations: yes/5x FMT, 5x AMT Band scan/preset scan: yes (FM/DAB)/no Sensitivity (FM): two levels (lo/dx) Interference suppression (FM): yes Hi-cut (FM): yes (multi-stage switching possible) DAB-DAB service following: yes DAB-FM service following: yes Service scan: yes Ensemble/service change: yes/yes Ensemble/service browsing: no/yes Alphabetical DAB station list: yes Frequency response FM (Hz) -3 dB: 30 - 15000 Frequency response DAB (Hz) +/- 3 dB: 20 - 20000 MEDIA PLAYER Aux-in/automatic detection/activation: no Front USB: yes (type A) Rear USB: yes (1x type A, cable) Memory card reader: no Concealed front inputs: yes (USB) Compatible formatting: FAT16, FAT32, exFAT Maximum memory size: > 128 GB Maximum number of files/folders: > 30,000 CD/DVD drive: no Playback formats: MP2, MP3, WMA, APE, FLAC, AAC, MP4, WAV Hi-Res audio file playback: no Display options: ID3V2 (title, artist, album), folder, file, playing time Folder and file browsing: yes iPod, iPhone control (iAP2, Lightning/USB-C): yes (front and rear USB) Folder/media shuffle: yes/yes Repeat title/folder/all: yes/yes/yes Title scan function: yes, time adjustable 4 - 60 seconds BLUETOOTH®* Phone calls: yes Internal microphone: yes Connection capability for external microphone: yes Accept/reject call: yes/yes Phone book access: yes (max. 1000 numbers) Audio streaming: yes Audio streaming with ID3 title display: yes (title, artist, album, playing time) Access to virtual assistants (e.g. Siri, Google, Alexa): yes Audio mix mobile phone navigation: no Auto wake up on call: yes (radio off + ignition on), can be deactivated Quick pairing without PIN: yes Automatic reconnection: yes, last 5 devices Bluetooth version: V5.0, compatible with V4.2 and V2.1+EDR Number of paired devices: last 5 Number of simultaneously connected devices: 1 Supported profiles: A2DP, AVRCP, HFP, SPP Audio codecs: AAC, SBC *Function availability/support depend on the phone/app used! SOUND Equaliser, number of bands/design/quality filter: no Bass/treble adjustment: yes/yes (+/- 7 levels) Source-specific bass/treble adjustment: yes Balance/fader: yes/yes (+/- 7 levels) HPF/LPF: no Loudness: yes Sound presets: yes (rock, pop, classical) Speaker outputs (channels): 4 Preamp outputs (channels, voltage): 4 (RCA, < 2V) Sub-out: 2 (RCA, gain/frequency variable) Max. power: 4 x 50 watts Sine wave power at 14.4 V: 4 x 24 watts (according to DIN 45324) GENERAL Display: LCD, negative, anti-reflective, wide angle, alphanumeric/symbols Scrolling: yes (one-time/recurring) Display illumination colour: multicolour, 7 colours (green, yellow, red, purple, blue, sky blue, white) Button illumination colour: amber, modelled on the original bulb lighting Day/night mode: yes (manual/via dimmer connection) Night design when switched off: yes (buttons) Brightness: multi-stage, variable Time display: yes HMI languages: English, German Hourly timer (automatic shutdown when ACC is off): yes, can be deactivated Low standby current: yes (< 3.5 mA) Aerial inputs: FM DIN/ISO (adaptor), DAB SMB (with 12 V phantom power) Mute input/phone mute: yes (mass active) External hands-free microphone connection: yes Remote control possible: yes (IR sensor for card remote control, compatible with old RC-10 remote control) Steering wheel remote control (SWC): yes (analogue, programmable, pre-programmed) Variable scan time: yes (4, 8, 12, 16, 60s) Key tones yes (can be deactivated) Control panel type: fixed panel Colour of panel/decorative ring: black/black Software update: via USB Permanent memory: yes (settings and presets) Demo mode: yes Weight: approx. 0.65 kg Dimensions: 50 mm x 178 mm x 116 mm (H x W x D, housing only), 58 mm x 187 mm x 11 mm (H x W x D, front without buttons) Operating voltage/power consumption: 10.5-14.4 V / < 10A in operation, ACC off after 10 seconds < 3.5 mA CONTENTS: Instructions: yes (DE, EN, DA, NL, FR, ES, PT, IT, PL, CS) External BT microphone: yes Unlocking tool: yes Connection cable (ISO A, B): yes Aerial adaptor (DIN/ISO): yes

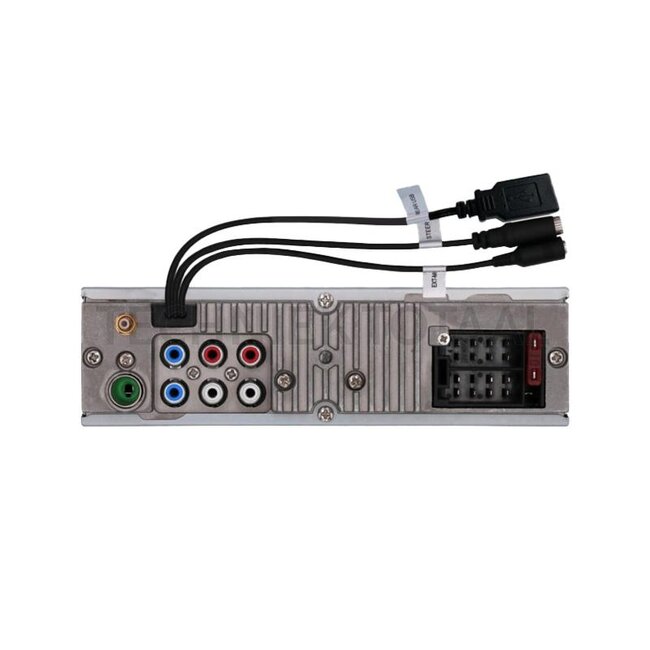

• Outlet: 4-channel preamp output + sub-out 4 x 50 watts
• Version: New edition of the classic HAMBURG SQM 23 from 1983 with state-of-the-art technology and many new features!
• Display: Multicolour LCD (7 colours)
• Width (mm): 178
• Depth (mm): 116

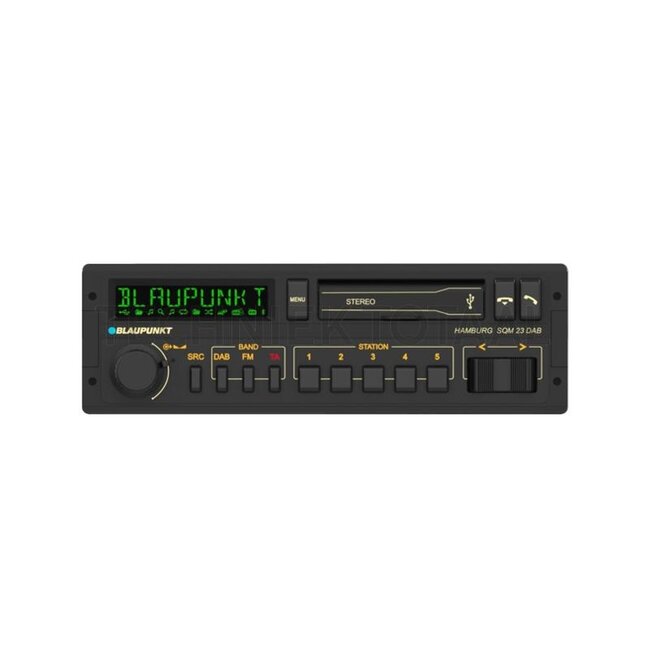

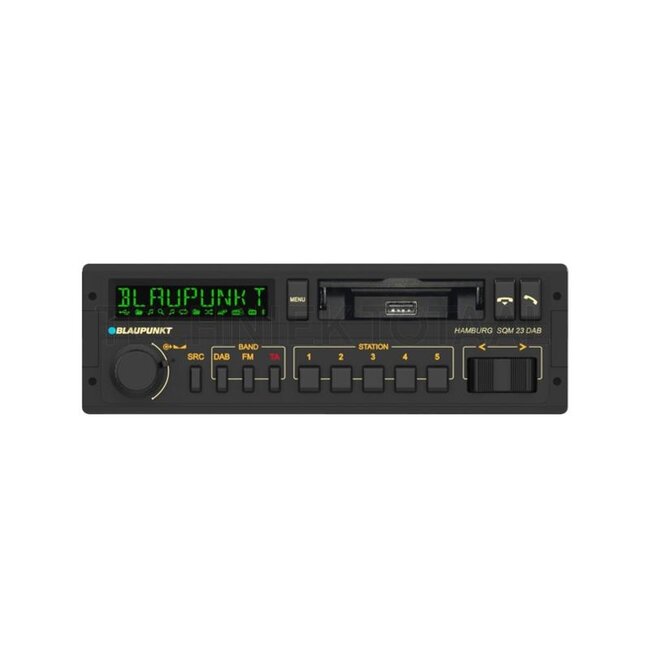

• Description: The new HAMBURG SQM 23 DAB cult car radio Ideal for vehicles from the 80s! Over the years, some models have become real cult favourites. This is certainly the case with the legendary Blaupunkt Hamburg SQM 23 brought out in 1983. This reinterpretation of the popular single-DIN car radio combines the design of the 80s model with new technologies and functions. The result is the Blaupunkt Hamburg SQM 23 DAB. Its operating concept, simple design and crystal-clear reception contributed significantly to the popularity of the original Hamburg radio. The new edition retains the styling of the original model, but has modern multi-colour LC display lighting. The button labels used to be illuminated with light bulbs, but these have now been replaced by modern and durable warm white LEDs. This lighting can also be activated via the vehicle lighting when the car radio is switched off. Thanks the Blaupunkt Codem FM RDS tuner and DAB+ digital tuner, first-class reception remains a strength of this radio designed for newer vehicles. The multimedia interfaces for modern Apple® devices and USB mass storage media for playing music or charging mobile phones are a new addition. The new model also supports Bluetooth® audio streaming from apps such as a music player or streaming services such as Spotify on the mobile phone. Virtual assistants such as Siri, Google or Alexa can be used to access the mobile phone without having to pick it up. Hands-free phone calls are also supported. A button on the device can be programmed via the menu in order to be able to select an audio source such as USB, Apple iPod or Bluetooth directly. The device's settings are saved permanently, even if the battery is disconnected - although this is no longer necessary thanks to the minimised standby power consumption designed to preserve the battery. The new Hamburg SQM 23 DAB has a short installation depth - ideal for newer vehicles with shorter installation slots. But it’s not just the radio that will take the user back in time - the packaging has also been elaborately designed and modelled on the original. - CODEM IV high-end tuner - Blaupunkt DAB+ tuner - 2x USB (front + rear) - Telephone calls via internal or external microphone - Audio streaming with title display - Access to virtual assistants (Siri, Google, Alexa) - Sound presets: flat/pop/rock/classical - 4-channel preamp output + sub-out - 4 x 50 watts - Multicolour (7 colours) display
• Height (mm): 50
