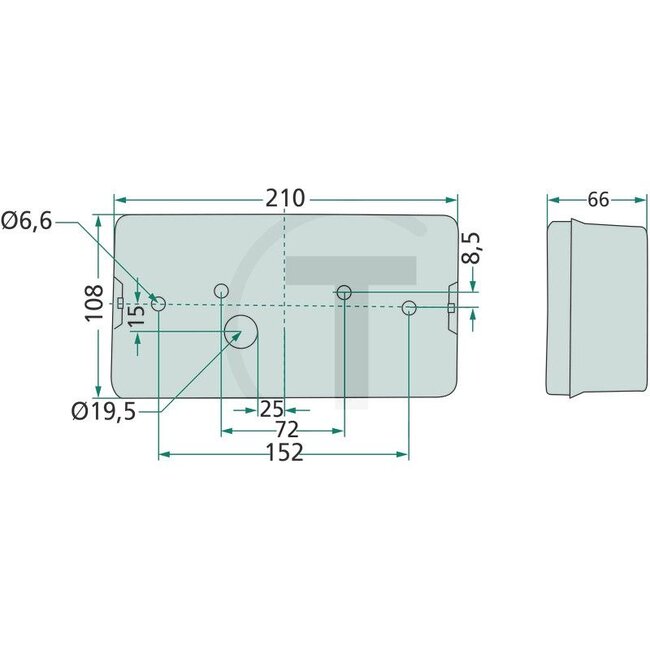

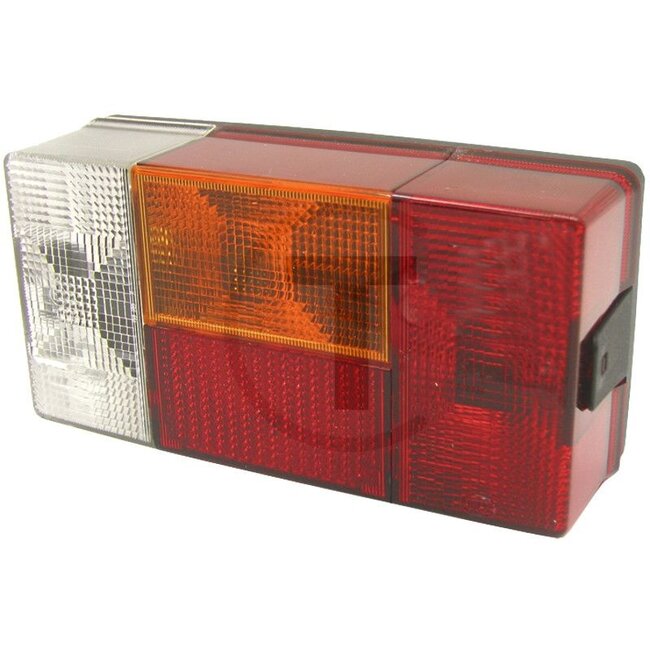

Right rear light measuring 210 x 108 x 66 mm, rated at 12 / 24 V with a hole spacing of 152 mm. It is made of plastic, has a black housing and a blade terminal connection. Light functions are indicator light, rear light, brake light, reversing light and reflector. It is a bulb type using P21W and R10W bulbs, which are not included. It is screwed on and mounted horizontally to the towing vehicle, with protection classes IPX4K, IPX9K and IP5KX. Test marks: E13 9385 and E13 9531. Approved for trailers if EC partial type approval for lighting has been granted. Fits tractors from Case IH, Linde and Still.
Reference numbers:2VP 006 040-121, 02-119503, 0009740603, 0159641
Mammut 6900, Mammut 7400, Mammut 7800, Mammut 8790, Serie Mammut
Diverse
M 25, M 26, M 26.5, M
Diverse, R, R07-25 I (0127)
| Article number | 4552VP 006040121 |
|---|---|
| EAN | 4082300025972 |
| Weight | 560 g |
| Bulb | P21W, R10W |
| Colour | Multicoloured |
| Connection | Blade terminal |
| Width | 210 mm |
| Form | Rectangular |
| Height | 108 mm |
| Hole spacing | 152 mm |
| Material | Plastic |
| Dimensions W x H x D | 210 x 108 x 66 mm |
| Depth | 66 mm |
| Fixing | Horizontal |
| Installation location | Right |
| Protection class | IPX4K, IPX9K, IP5KX |
| Nominal voltage | 12 / 24 V |
| Test mark | E13 9385, E13 9531, ECE |
| Type | Bulb |
| Light function | Indicator light, rear light, brake light, reversing light, reflector |
| Type testing | nicht SAE-geprüft |
| Additional information | • Approved for trailers if EC partial type approval for lighting has been granted • Without bulbs |
| Bulbs included | No |
| Mounting type | Mounting |
| Housing colour | Black |
