Name: HELLA Rear light left / right Ø 140 x 80 mm, 12 / 24 V, hole spacing 45 mm | G716900020090, G716900020120, 2SD001685211
Brand: HELLA
SKU: 4552SD 001685211
Price: 41.70 EUR

HELLA Rear light left / right Ø 140 x 80 mm, 12 / 24 V, hole spacing 45 mm | G716900020090, G716900020120, 2SD001685211

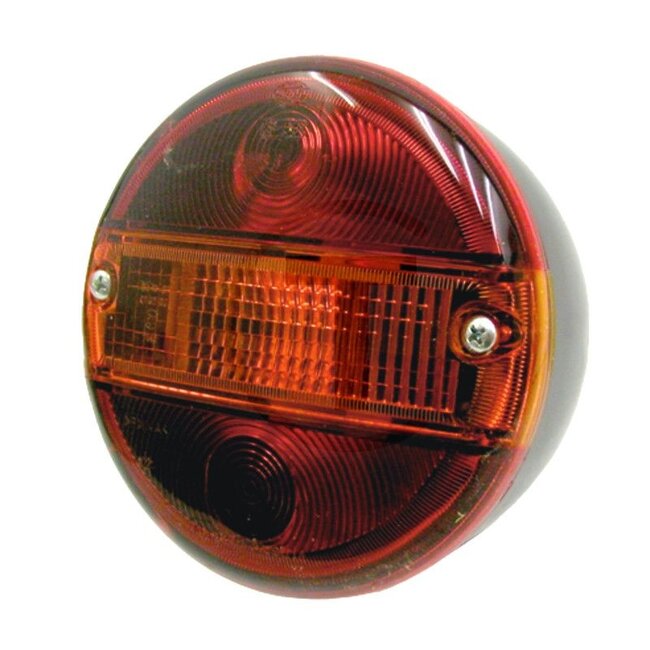

Rear light

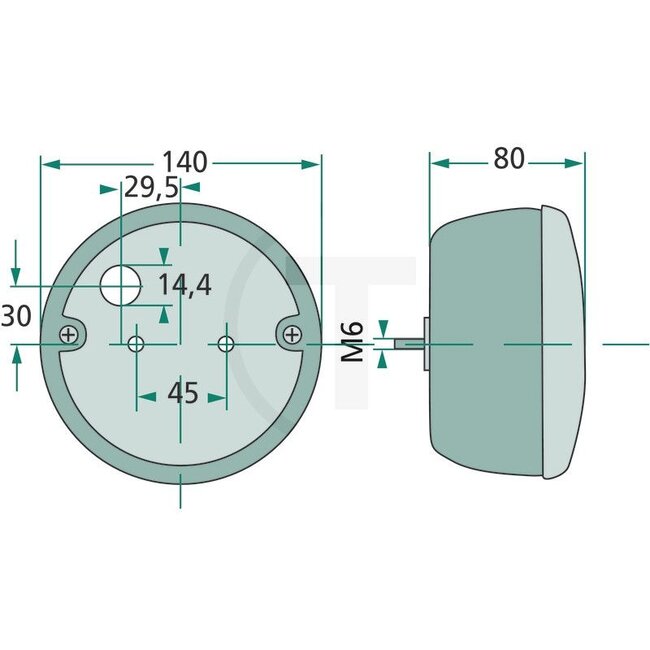

Dimensions W x H x D (mm): Ø 140 x 80

Light function: Indicator light, rear light, brake light

Bulb: P21W, R5W

Bulbs included: No

Mounting type: Mounting, screwed

Fixing: Horizontal

Hole spacing (mm): 45

Nominal voltage (V): 12 / 24

Colour: Red/yellow

Connection: Blade terminal

Width (mm): 140

Form: Round

Height (mm): 140

Material: Housing: plastic

Depth (mm): 80

Installation location: Left/right

Protection class: IP5K4K

Housing material: Plastic

Test mark: E12 7146, ECE, ADR/GGVS tested, with TÜV certificate, E-type tested

Type: Bulb

Additional information: • Without bulbs
• Without indicator failure monitoring
• Electromagnetic compatibility (EMC)
• With screws

Housing colour: Black

Diameter (mm): 140

Approval: E-Typ-geprüft, ADR/GGVS-geprüft

Menke no.: 55133

Passend voor:

Fendt: 2SD 001 685-211, G716900020120, G716900020090, Serie Farmer 400, Farmer 409 (Typ 409), Farmer 410 (Typ 410), Farmer 411 (Typ 411), Farmer 412 (Typ 412), Serie Favorit 700, Favorit 711 (Typ 711), Favorit 712 (Typ 712), Favorit 714 (Typ 714), Favorit 716 (Typ 716), Serie Favorit 900, Favorit 916 (Typ 916), Favorit 918, Favorit 920 (Typ 920), Favorit 924 (Typ 924), Favorit 926 (Typ 926), Serie Fendt 300, Fendt 309 (Typ 322), Fendt 309 (Typ 336), Fendt 310 (Typ 323), Fendt 310 (Typ 337), Fendt 311 (Typ 324), Fendt 311 (Typ 338), Fendt 312 (Typ 325), Fendt 312 (Typ 339), Fendt 313 (Typ 340), Serie Fendt 400, Fendt 411 (Typ 400), Fendt 412 (Typ 401), Fendt 413 (Typ 402), Fendt 414 (Typ 403), Fendt 415 (Typ 404), Serie Fendt 700, Fendt 711 (Typ 711), Fendt 712 (Typ 712), Fendt 712 (Typ 724), Fendt 714 (Typ 714), Fendt 714 (Typ 725), Fendt 716 (Typ 716), Fendt 716 (Typ 726), Fendt 718 (Typ 727), Serie Fendt 800, Fendt 815 (Typ 715), Fendt 817 (Typ 717), Fendt 818 (Typ 718), Fendt 818 (Typ 729), Fendt 820 (Typ 731), Serie Fendt 900, Fendt 916 (Typ 916), Fendt 918, Fendt 920 (Typ 920), Fendt 924 (Typ 924), Fendt 926 (Typ 926), Fendt 930 (Typ 930)
