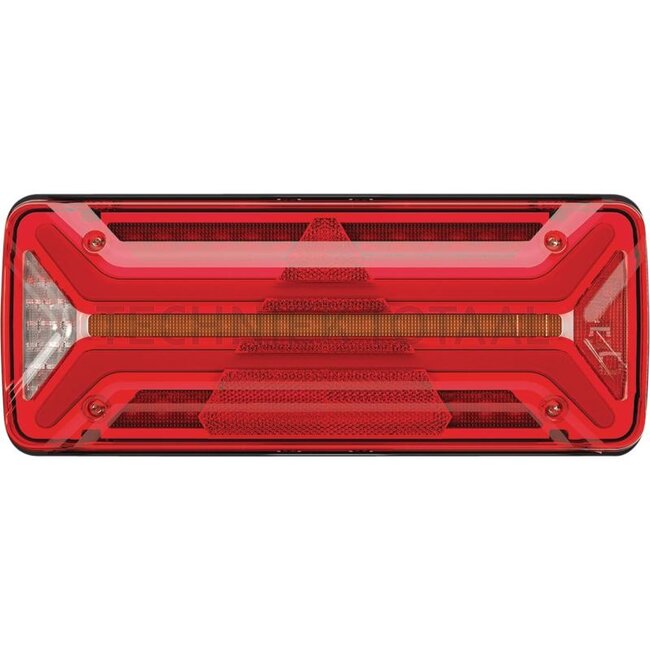

ASPÖCK Rear light
Left, with 7-pin ASS2 connection, full LED, 10 - 30 V, triangular reflector, ISO pulse according to ISO 13207
Technical data:
- Type: LED
- Fixing: Horizontal
- Form: Rectangular
- Power consumption: Indicator: 3.3 W (12 V) / 7 W (24 V) Brake light: 3.3 W (12 V) / 4 W (24 V) Reversing light: 2.1 W (12V) / 2.6 W (24 V) Rear fog light: 2.46 W (12 V) / 3.12 W (24 V) Rear light: 3.24 W (12 V) / 4 W (24V) ISO pulse 13027-1: max. 24 W (24 V)
- Temperature range (°C): -40 to +50
- Width (mm): 360
- Light function: Indicator light, rear light, brake light, reversing light, rear fog light, triangular reflector
- Thread: 2 M8 screws, centre
- Protection class: Light: IP54 Electronic components: IP6K9K
- Fixing bolt tightening torque Nm: 5,5 - 6,0
- Installation location: Left
- Hole spacing (mm): 152
- Nominal voltage (V): 12 / 24
- Height (mm): 146
- Material: Housing: PC/ABS | Lens: PMMA
- Description: Rear light
- Connection: 7-pin ASS2
- Voltage range (V): 10 - 30
- Additional information: • Innovative Glowing Body technology as side light • Increased visibility thanks to the large illuminated area for the side light and brake light functions • Dynamic direction indicator • ISO pulse 13207-1 as standard (at 24 V) • Practical click system makes it easier to install the lens • Chemical- and scratch-resistant lens • SMCG (Sidemarker Control Gear) included (for version with 2-pin outputs) according to ECE 48, Rev. 6 • Intelligent partial deactivation of the brake light when the rear fog light is activated • LED rear light with interchangeable lens
- Depth (mm): 45
- Test mark: 10R 05 E9 16266, E 9 22480
- Dimensions W x H x D (mm): 360 x 146 x 45
