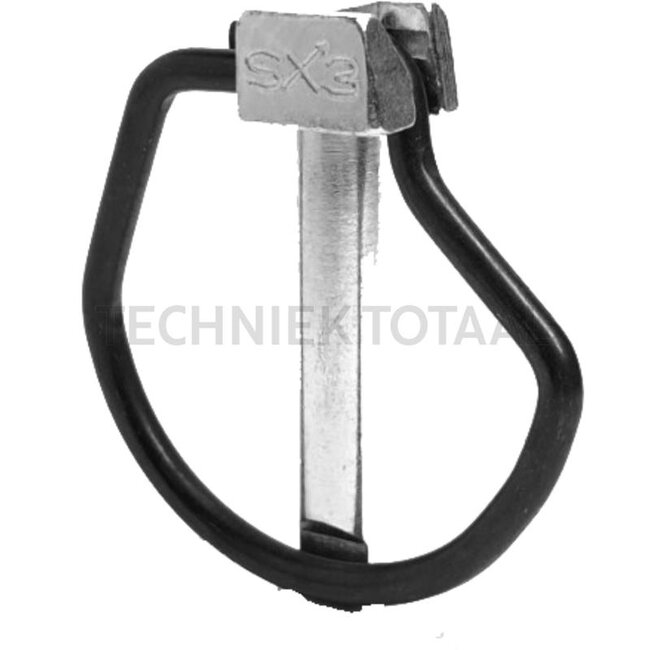

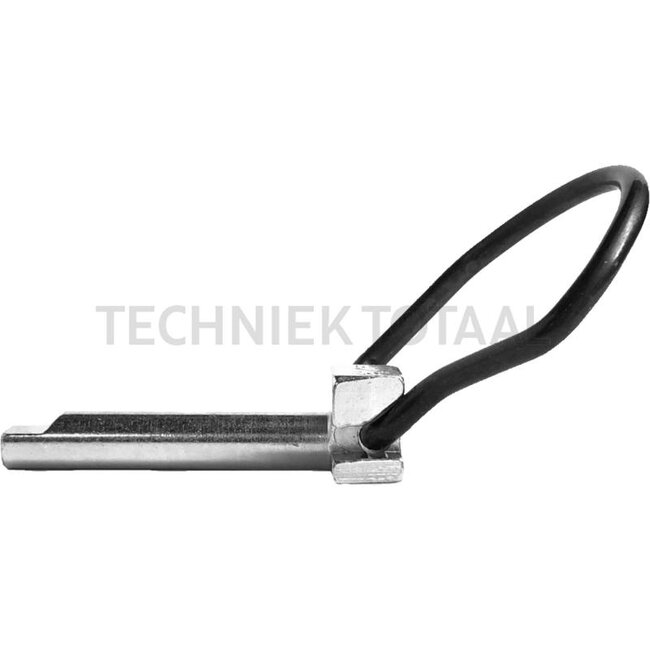

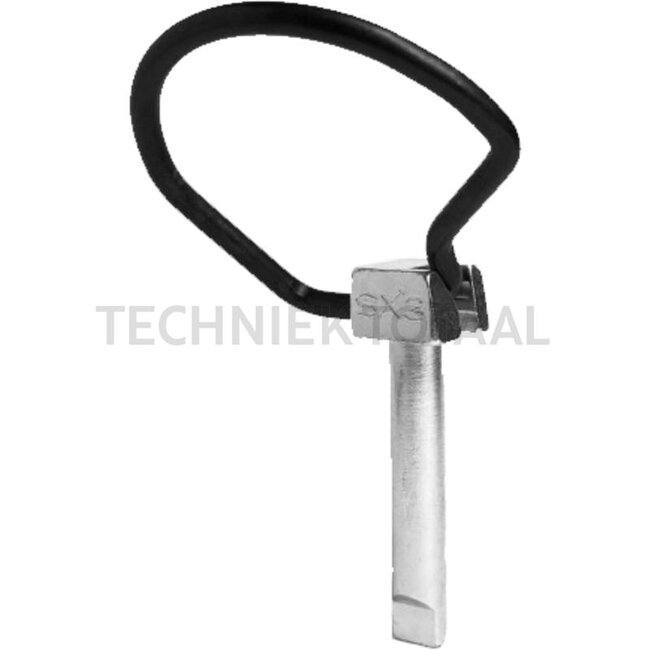

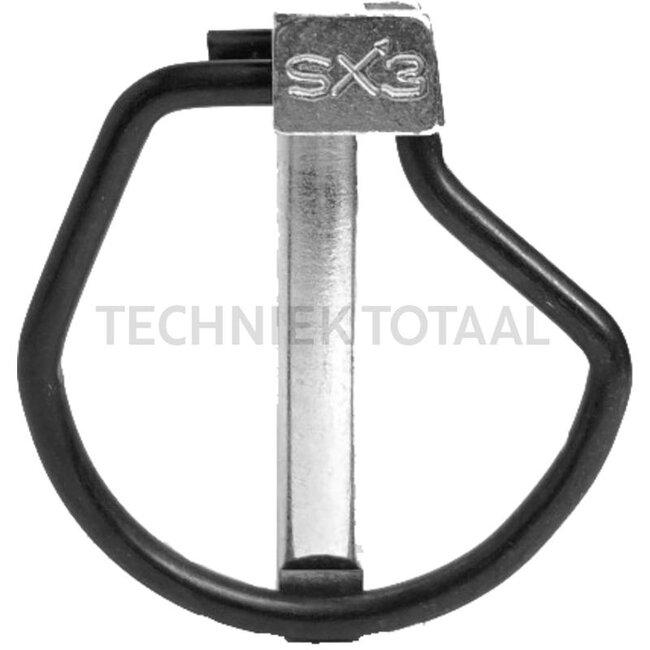

SIMTECX Safety linch pin SX3 5 x 32 mm, clamp thickness 16 - 22 mm

Name: SIMTECX Safety linch pin SX3 5 x 32 mm, clamp thickness 16 - 22 mm
Brand: SIMTECX
SKU: 19642455
Price: 12.15 EUR

€12,15 Incl. 21% VAT

€10,04 Excl. VAT

In stock

A (mm): 5 | F (mm): 9,3 | E (mm): 6,7 | B (mm): 32 | H (mm): 16 - 22 | Dimensions (mm): 05 x 32 | D (mm): 35,8 | Version: The SX3 linch pin with triple safety is used as a securing element (pin lock) in machine and vehicle construction. This linch pin com Read more.

Found in category:

Tractor & vehicle› Three-point linkage parts› Securing parts

60.000+ technical products
Worldwide shipping*
30-day return policy
Customer rating 9.3/10

Larger quantity required?

Any questions about this product?

Or do you need any help ordering? Feel free to get in touch with our support department at [email protected]. We're happy to help!

Product description

SIMTECX Safety linch pin

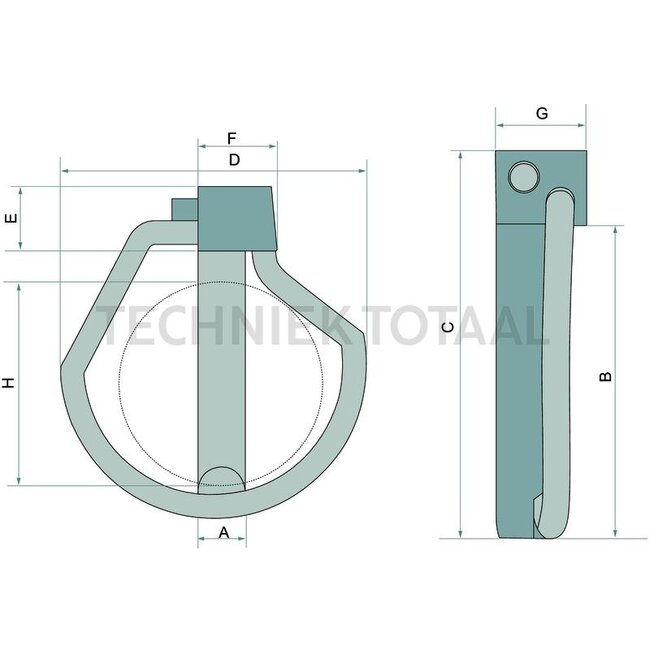

Technical data:

A (mm): 5
F (mm): 9,3
E (mm): 6,7
B (mm): 32
H (mm): 16 - 22
Dimensions (mm): 05 x 32
D (mm): 35,8
Version: The SX3 linch pin with triple safety is used as a securing element (pin lock) in machine and vehicle construction. This linch pin combines three crucial safety functions in the pin head. Thanks to the patented pin head/spring ring design, the spring ring is held in the groove of the pin head when opened or closed. In the open position, it is not possible to fold the pin backwards or forwards unintentionally. When closed, it can only be opened as desired by the user. This results in three key benefits for every user: → No automatic opening → No automatic closing → No loss of the linch pin
G (mm): 6,5
Ring Ø (mm): 2,5
C (mm): 40,4
