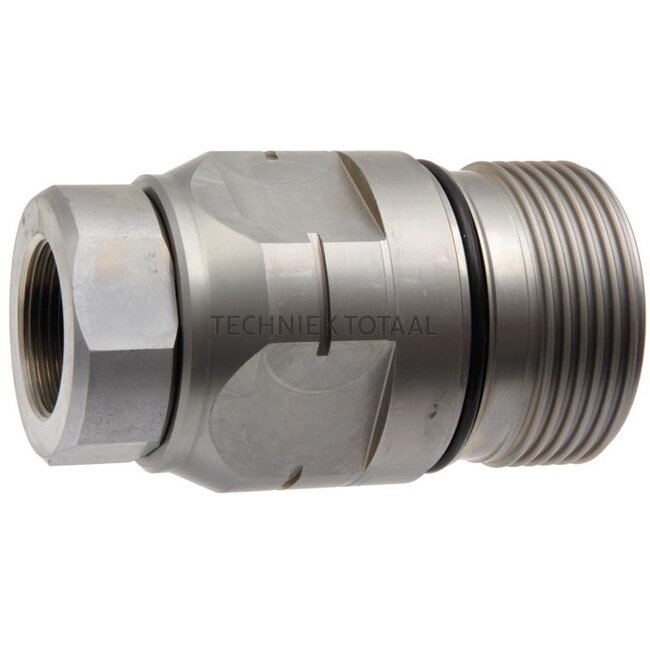

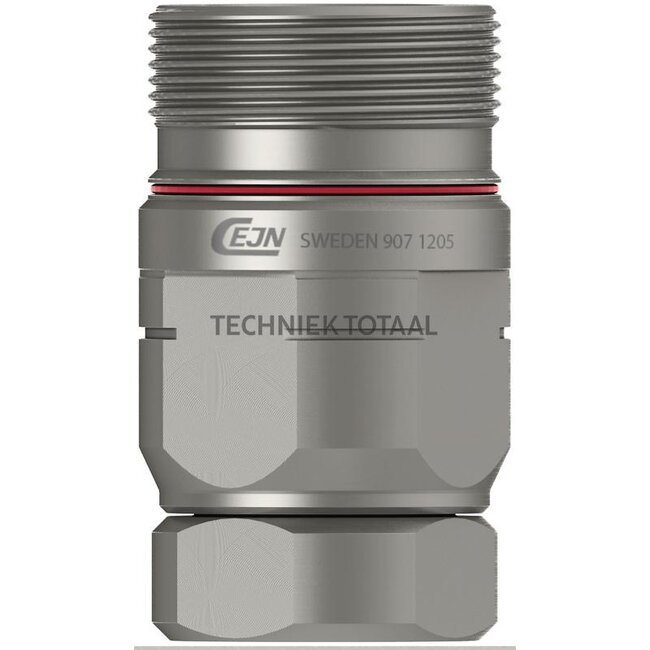

Cejn Screw coupling TLX 907 sleeve 2 1/2" UNF ORB, DN 38, 380 bar
Replaces: 10 907 1607
Technical data:
- Nominal width (inches): 1.1/2"
- Operating pressure max. (bar): 380
- Connection thread: 2 1/2"-12 UNF (SAE 2") ORB
- Nominal width DN: 38
- Size: 24
- Burst pressure (bar): 1000
- Volume flow max. (l/min): 740
