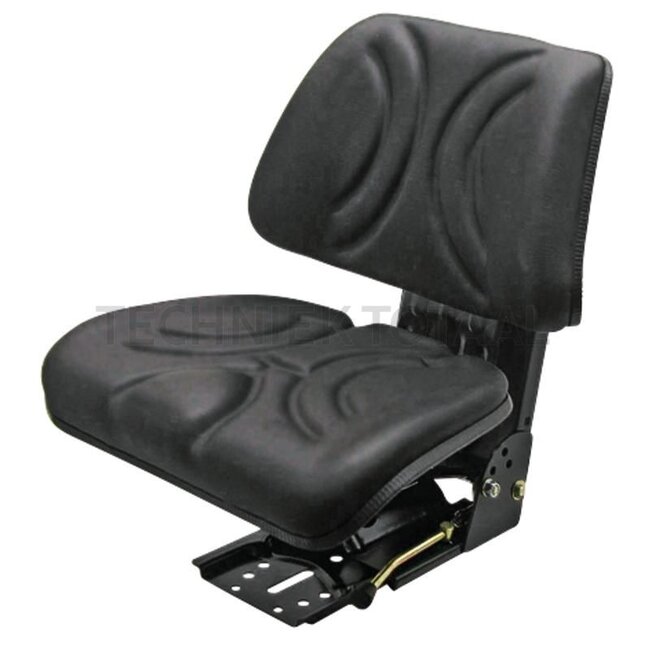

GRANIT Tractor seat mechanical PVC 480 mm, spring travel 100 mm, height 550 mm | 24002190, 14072160, 51152810, 50020014, 27837410, 24000060, 14321120, 14320970
-9%
GRANIT Tractor seat mechanical PVC 480 mm, spring travel 100 mm, height 550 mm | 24002190, 14072160, 51152810, 50020014, 27837410, 24000060, 14321120, 14320970
GRANIT Tractor seat mechanical PVC 480 mm, spring travel 100 mm, height 550 mm | 24002190, 14072160, 51152810, 50020014, 27837410, 24000060, 14321120, 14320970
GRANIT Tractor seat mechanical PVC 480 mm, spring travel 100 mm, height 550 mm | 24002190, 14072160, 51152810, 50020014, 27837410, 24000060, 14321120, 14320970

GRANIT Tractor seat mechanical PVC 480 mm, spring travel 100 mm, height 550 mm | 24002190, 14072160, 51152810, 50020014, 27837410, 24000060, 14321120, 14320970

€193,50
€176,15 Incl. 21% VAT
€145,58 Excl. VAT
In stock

Technical data: - Sprung seat with suspension adjustment for weights from 50 kg to 120 kg, - Suspension stroke 100 mm, suspension with double-acting shock absorber 80 mm, - Longitudinal adjustment with guides: Adjustment range 150 mm, - The seat console i Read more.

Larger quantity required?



Any questions about this product?
Or do you need any help ordering? Feel free to get in touch with our support department at [email protected]. We're happy to help!

Product description

Seat

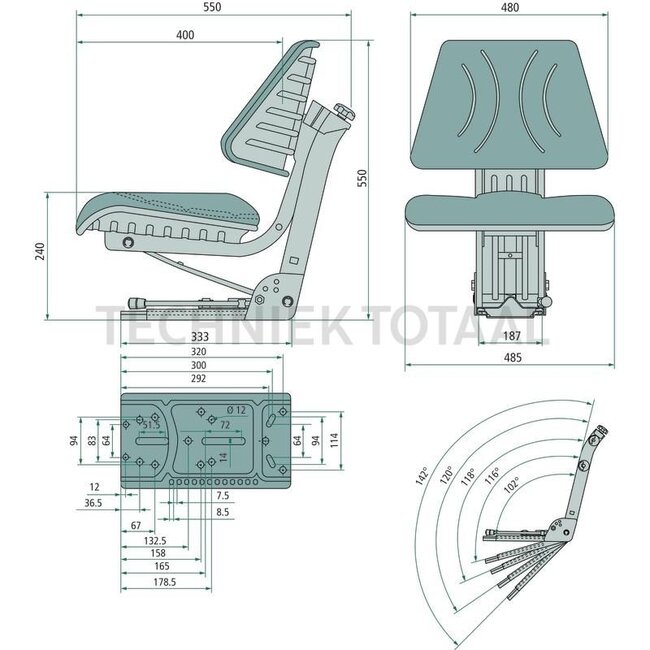

  • Technical data: - Sprung seat with suspension adjustment for weights from 50 kg to 120 kg
    - Suspension stroke 100 mm, suspension with double-acting shock absorber 80 mm,
    - Longitudinal adjustment with guides: Adjustment range 150 mm
    - The seat console is equipped with a five-position tilt adjustment 12°, 16°, 20°, 25°, 42°.
  • Height (mm): 550
  • Length (mm): 550
  • Suspension: mechanical
  • Track gauge (mm): 187
  • Gauge: Up to 187
  • Upholstery type: PVC
  • Seat contact switch: No
  • Rotation: No
  • Seat width (mm): 480
  • Joystick console: No
  • Side horizontal suspension: No
  • Restraint system: Optional
  • Seat heater: No
  • Menke no.: 44299
  • Further information

    Article number
    24000060
    EAN Code
    4059139132751
    SKU
    24000060
