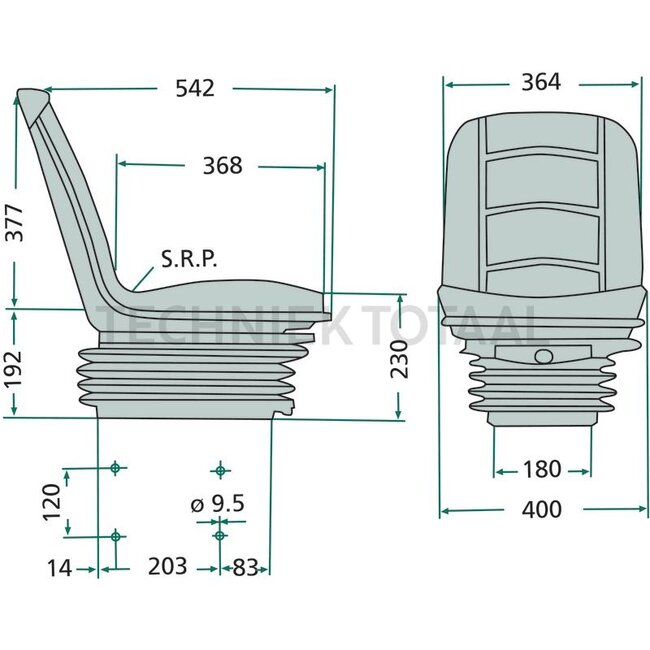

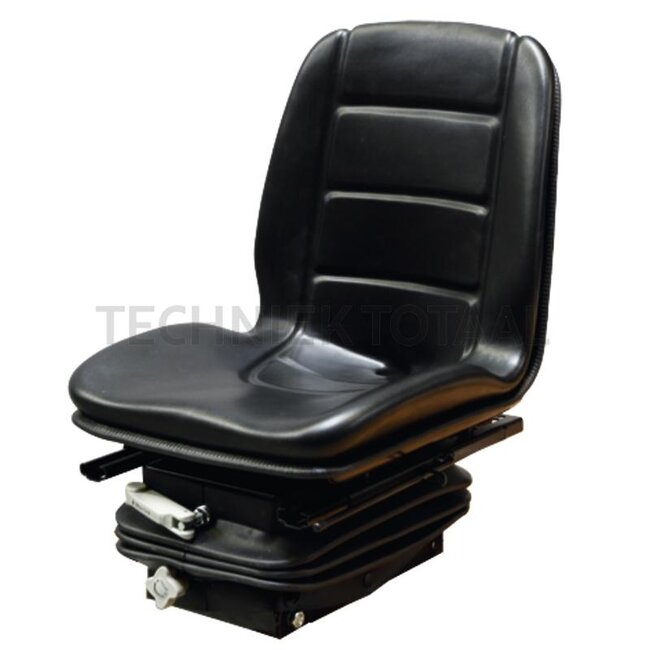

Tractor seat mechanical PVC 400 mm, spring travel 100 mm, height 569 mm | STPLUSGC11-H

Seat

• Technical data: ● Sprung seat with suspension adjustment for weights from 50 kg to 120 kg
  ● Suspension travel 100 mm
  ● Suspension with hydraulic shock absorber
  ● Longitudinal adjustment with guide rails
  ● Adjustment range 150 mm in steps of 15 mm
  ● Seat height adjustment 60 mm
  ● Seat width 400 mm
  ● Upholstery made from integral polyurethane with vacuumpolyurethane with vacuum cover made of fabric
  ● Base plate 180 x 295 mm
• Height (mm): 569
• Length (mm): 542
• Suspension: mechanical
• Track gauge (mm): 225
• Gauge: Up to 225
• Upholstery type: PVC
• Seat contact switch: Yes
• Rotation: No
• Seat width (mm): 400
• Joystick console: No
• Side horizontal suspension: No
• Restraint system: Optional
• Seat heater: No
