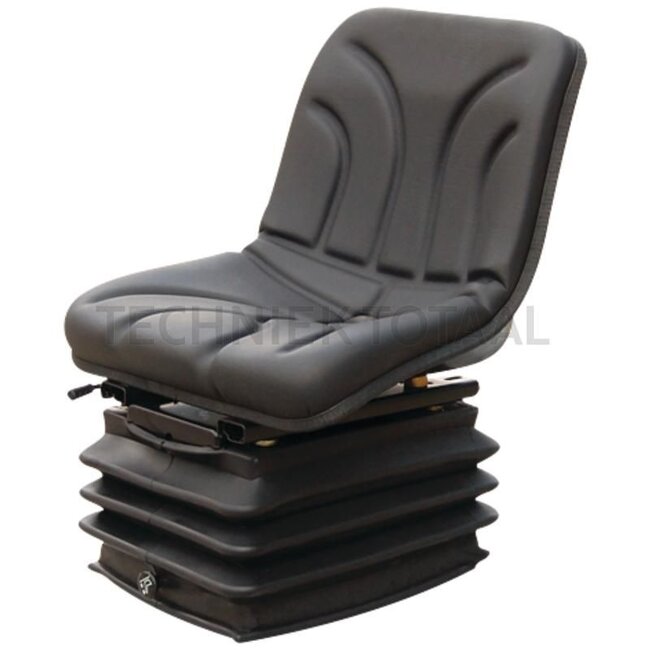

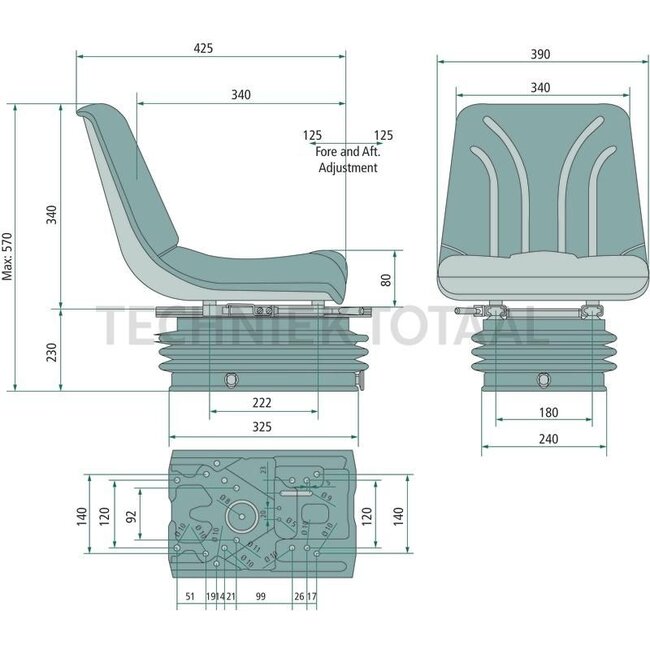

The tractor seat is air suspended and fitted with PVC upholstery, with a seat width of 400 mm and a track width of 225 mm. The seat has a suspension stroke of 100 mm with hydraulic shock absorber and a seat height adjustment of 60 mm. The seat is suitable for weights from 50 kg to 130 kg, and the longitudinal adjustment has an adjustment range of 250 mm. The seat is 570 mm high and 425 mm long, and has a 12 volt compressor and an on-board voltage of 12 V. The restraint system is optional.
| Article number | 240920035 |
|---|---|
| EAN | 4059139133147 |
| Weight | 100 kg |
| Technical data | - Air-sprung with 12 volt compressor - Sprung seat with suspension adjustment for weights from 50 kg to 130 kg ● Suspension stroke 100 mm, suspension with hydraulic shock absorber ● Longitudinal adjustment with guides, Adjustment range 250 mm ● Seat height adjustment 60 mm ● Upholstery made of integral polyurethane with PVC vacuum panelling ● Base plate 180 x 260 mm CE homologation e24*78/764 |
| Height | 570 mm |
| Length | 425 mm |
| Suspension | Air-sprung |
| Track gauge | 225 mm |
| Gauge | Up to 225 |
| Upholstery type | PVC |
| Seat contact switch | No |
| Rotation | No |
| Seat width | 400 mm |
| Joystick console | No |
| Side horizontal suspension | No |
| Restraint system | Optional |
| On-board voltage | 12 V |
| Seat heater | No |
