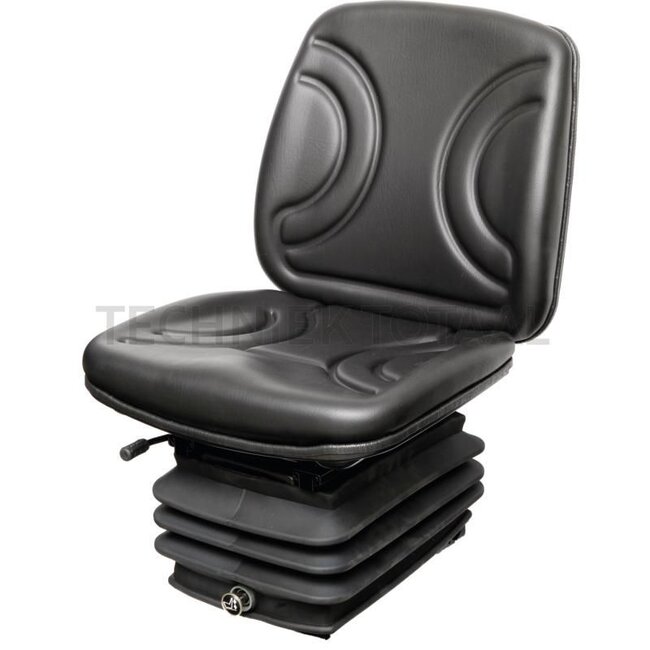

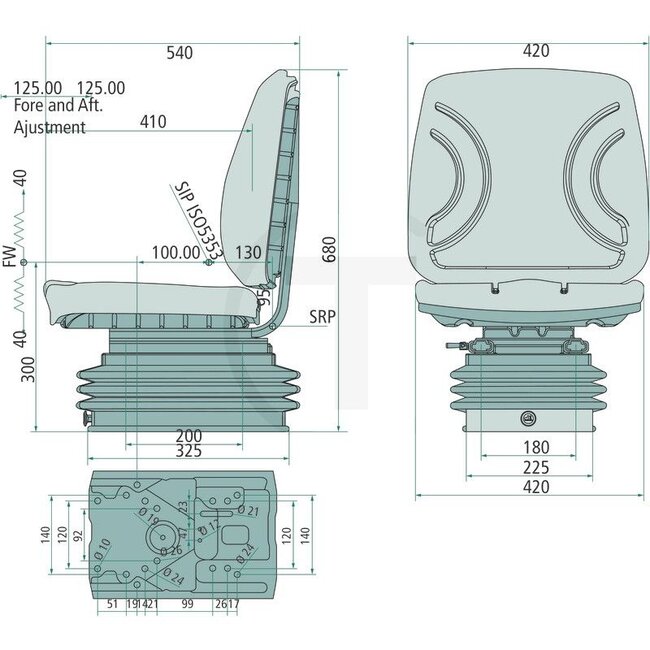

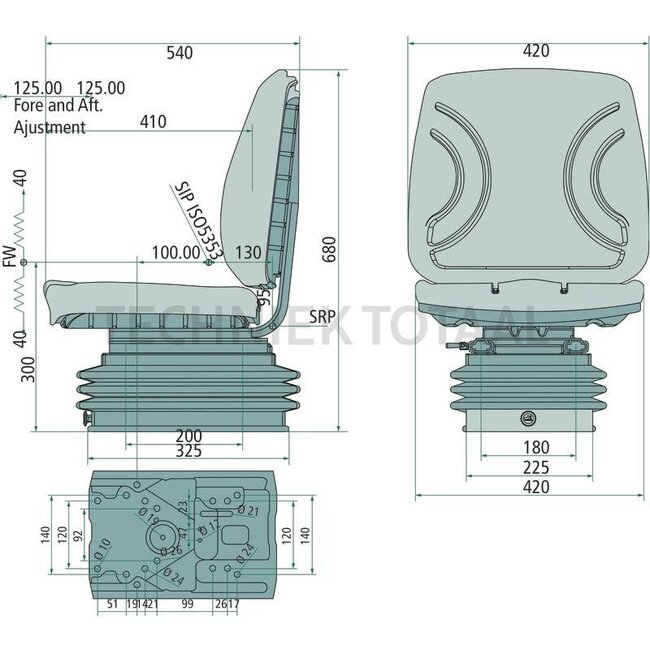

Tractor seat with air suspension and PVC upholstery. The seat width is 420 mm, the suspension stroke is 100 mm and the longitudinal adjustment with guide rails is 250 mm. The seat is adjustable for a weight of 100 kg to 130 kg, and the seat height is adjustable over 80 mm. The seat has a 12 V compressor. Height 680 mm, length 540 mm, track width 225 mm. The restraint system is optional.
| Article number | 240920037 |
|---|---|
| EAN | 4059139133178 |
| Weight | 100 kg |
| Technical data | Air-sprung seat with adjustment for weights from 100 kg to 130 kg ● Suspension stroke 100 mm ● Longitudinal adjustment with guide rails 250 mm ● Adjustment range 150 mm in steps of 15 mm ● Seat height adjustment 80 mm ● Seat width 425 mm ● Upholstery made from integral polyurethane with vacuumpolyurethane with fabric vacuum panelling ● Air suspension with 12 volt compressor CE homologation e24*78/764 |
| Height | 680 mm |
| Length | 540 mm |
| Suspension | Air-sprung |
| Track gauge | 225 mm |
| Gauge | Up to 225 |
| Upholstery type | PVC |
| Seat contact switch | No |
| Rotation | No |
| Seat width | 420 mm |
| Joystick console | No |
| Side horizontal suspension | No |
| Restraint system | Optional |
| On-board voltage | 12 V |
| Seat heater | No |
