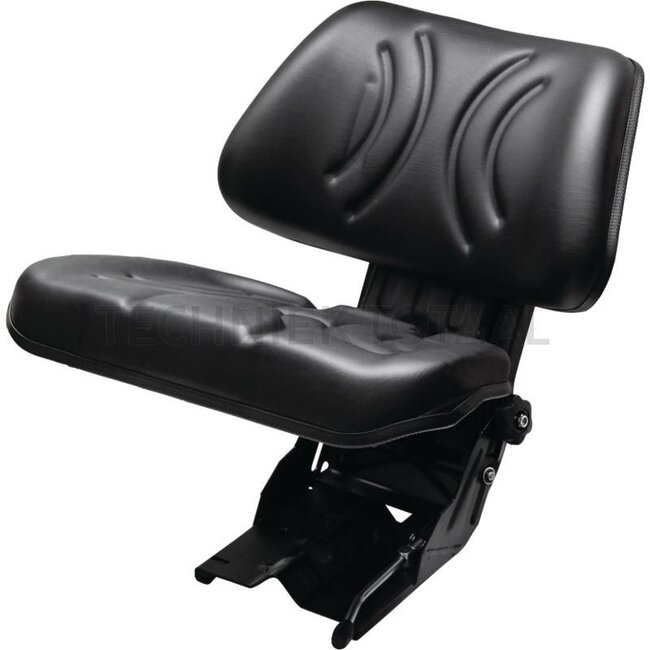

Tractor seat mechanical PVC, seat width 480 mm, height 650 mm | ST13DS-05MP

Name: Tractor seat mechanical PVC, seat width 480 mm, height 650 mm | ST13DS-05MP
SKU: 240920060
Price: 264.70 EUR

€290,78

€264,70 Incl. 21% VAT

€218,76 Excl. VAT

In stock

Technical data: ● Suspension seat with suspension adjustment for weights from 50 kg to 120 kg., ● Suspension stroke 100 mm, suspension with double-acting shock absorber, ● Longitudinal adjustment with guides: Adjustment range 150 mm, ● The seat cushion is Read more.

60.000+ technical products
Worldwide shipping*
30-day return policy
Customer rating 9.3/10

Larger quantity required?

Any questions about this product?

Or do you need any help ordering? Feel free to get in touch with our support department at [email protected]. We're happy to help!

Product description

Seat

Technical data: ● Suspension seat with suspension adjustment for weights from 50 kg to 120 kg.
● Suspension stroke 100 mm, suspension with double-acting shock absorber,
● Longitudinal adjustment with guides: Adjustment range 150 mm
● The seat cushion is spring-loaded and folds up automatically when relieved
● Seat height adjustable 60 mm

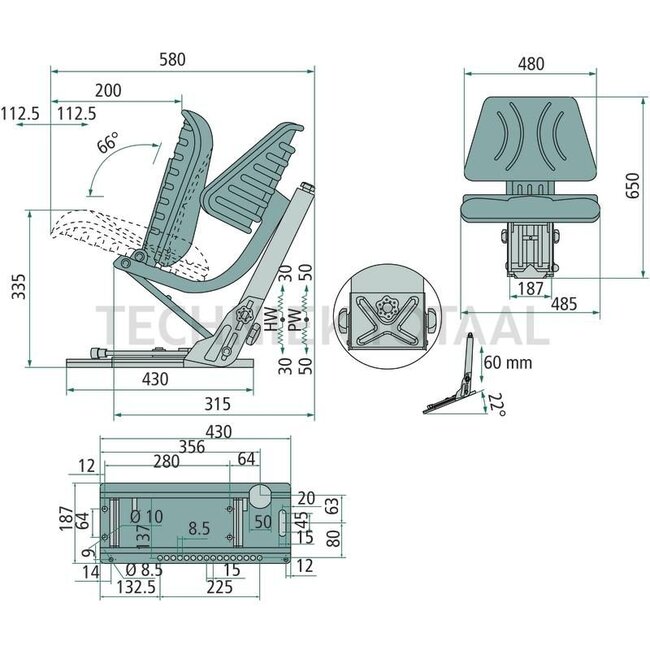

Height (mm): 650

Length (mm): 580

Suspension: mechanical

Track gauge (mm): 187

Gauge: Up to 187

Upholstery type: PVC

Seat contact switch: No

Rotation: No

Seat width (mm): 480

Joystick console: No

Side horizontal suspension: No

Restraint system: Optional
