PROBOSS AS3510

Technical data:

• Joystick console: Yes
• Height (mm): 270 → 370
• Rotation: Yes
• Track gauge (mm): 260
• • Air suspension with 12V compressor • Fore/aft isolator • Continuous height adjustment • Longitudinal adjustment • Backrest tilt adjustment • Mechanical lumbar support • Adjustable Comfort Plus armrests • Adjustable back extension • Rotation max. 20° right/left • Seat cushion width 510 mm • Seat height 270-370 mm • Weight 39.5 kg • Document box on the backrest • Seat cushion depth adjustment • Seat cushion tilt adjustment • 5-way adjustable damper
• Seat width (mm): 510
• Upholstery type: Fabric
• To fit: Deutz VII

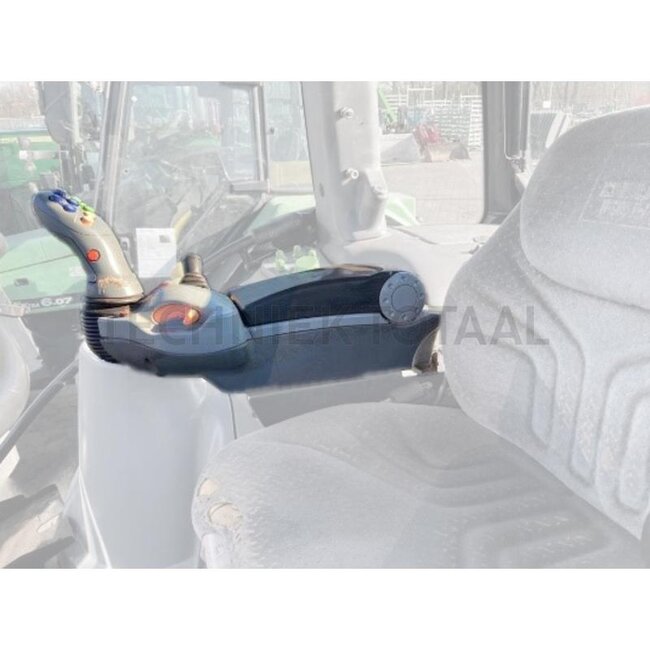

• Included in delivery: Seat supplied with seat contact switch and bracket for your existing control armrest. The bracket can be used to mount your existing control armrest on new seats. The image shows a control armrest that fits this seat (not included).
• Restraint system: Optional
• Seat contact switch: Yes
• Suspension: Air suspension
• On-board voltage (V): 12
