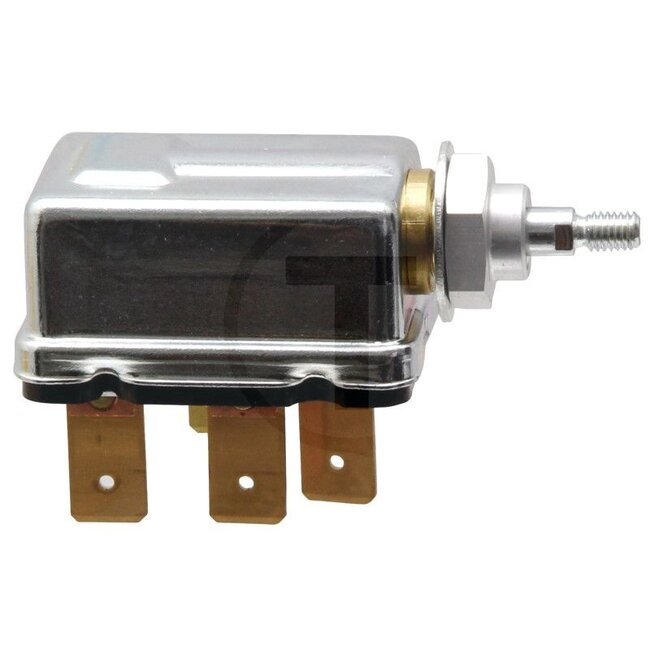

Start switch Pull switch, without control button
Version: 12 V/24 V, galvanised steel housing,
power rating: 50 A / 12 V (terminal 19),
27 A / 24 V (terminal 19), 12 A / 12 V (terminal 50a),
9 A / 24 V (terminal 50a),
fixing: with hexagon nut M10 x 1,
flush mounting: Ø 10.5 mm for wall thickness up to 3 mm,

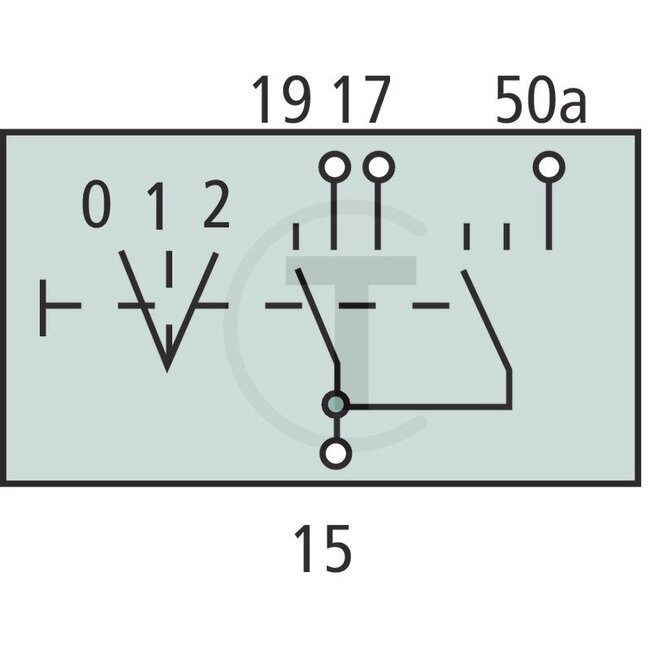

switch positions: control button must be held in position 1 (preheat)
and 2 (start), automatically returns
to position 0 (off),
connection: blade terminal
Passend voor:
Deutz-Fahr: 343008009, 0343008009, 01163920, Serie 06, D 4006, D 5206, D 6206
Case IH: 343008009, 0343008009, Serie A-Familie, 383, 423, 433, 453, 633, 733, 833, E 353, E 423, Serie B-Familie, 553, 644, 654, 743, 744, 745 S, 824, 844, 845
