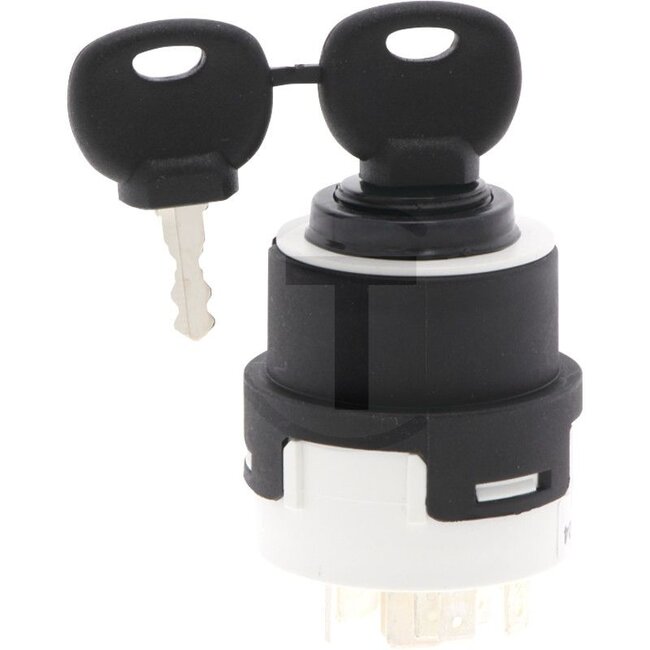

Glow and starter switch for 12 V and 24 V, with a mounting diameter of 28 mm and thread M26 x 1.5. It is fitted with 10 blade terminals (6.3 x 0.8 / 9.5 x 1.2 mm), a locking cylinder with water protection and 2 keys (type B 14607). The switch has the positions P, 0, ignition (I), preheat (II) and start (III), includes a start repeat interlock and a preheating function, and has approx. 50,000 switching operations. Ambient temperature: +85°C / -40°C.
Reference numbers:205 002 04, 9846786, 4209846786, 09846786, 50030507, 50020717
Diverse
TFG 316s 07/2004 - 08/2009, TFG 540 07/2004 - 06/2012, TFG 545 07/2004 - 06/2012, TFG 550 07/2004 - 06/2012, Diverse, Diverse
Diverse
Diverse
| Article number | 5070010127 |
|---|---|
| Weight | 210 g |
| Version | Operating voltage: 12 V/24 V Connection: 10 blade terminals (6.3 x 0.8 / 9.5 x 1.2 mm) Locking cylinder / key with water protection 2 keys (type B 14607) Number of switching operations: approx. 50,000 Circuit diagram: park (P), 0, ignition (I), preheat (II), start (III) Start repeat interlock: yes Preheating function: yes Ambient temperature: +85°C - -40°C Mounting Ø: 28 mm for thread M26 x 1.5 |
| Mounting Ø | 28 mm |
| Switching stages | P-0-1-2-3 |
| Plug | 10 |
| Voltage range | 12-24V |
| Locking number | 14607 |
