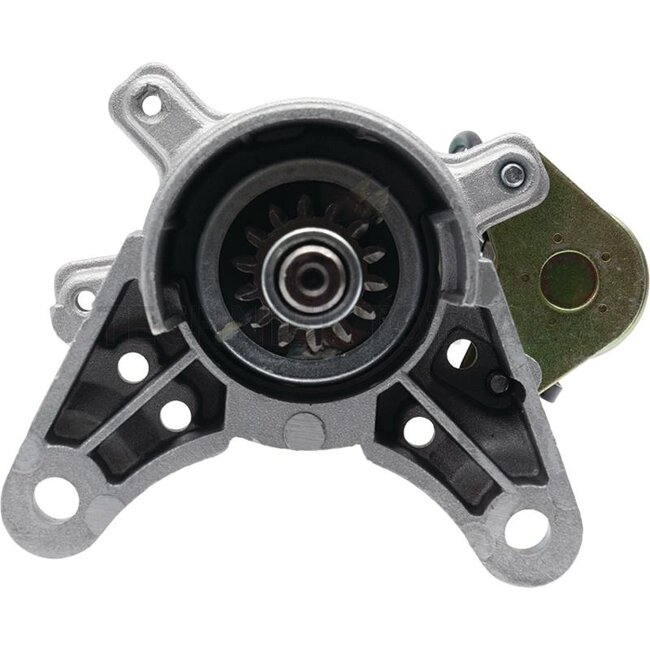

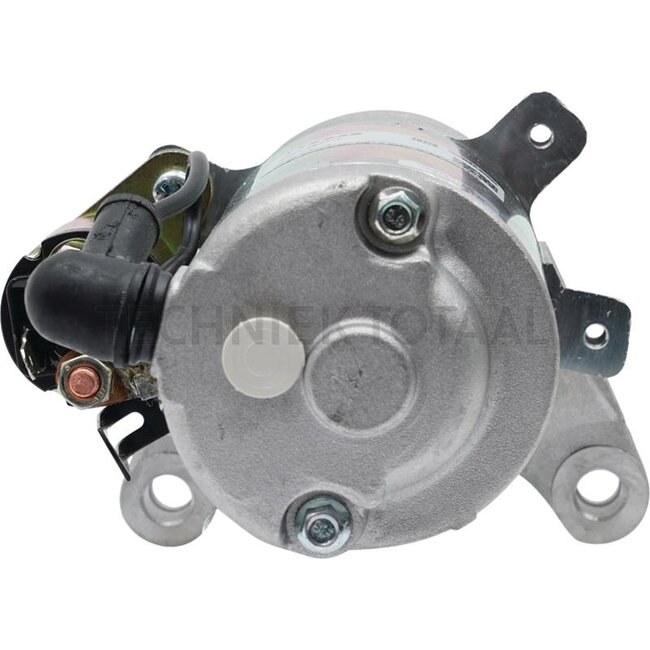

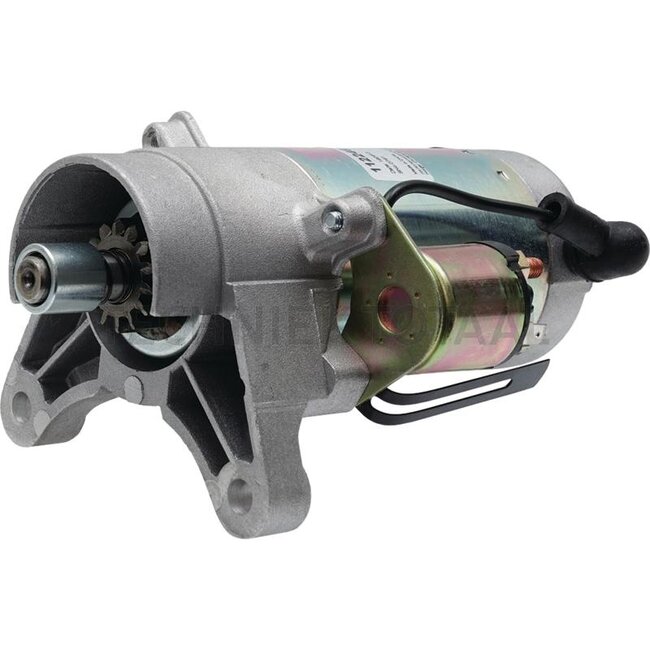

GRANIT Starter motor with reduction gear 12V 0.6 kW 14 teeth counter-clockwise
Replaces: 112246, F032112246
Technical data:
- Nominal voltage (V): 12
- Nominal power (kW): 0.6
- No. of pinion teeth: 14
- Holes / PCD (mm): 2 x 8.7 / 90.8
- Spacing flange to flywheel (mm): 10.0
- Installation length (mm): 154.0
- Fitting Ø (mm): 62.5
- Installation angle (°): -
- Direction of rotation: counter-clockwise
- Additional information: Connections: B+ (M6)
