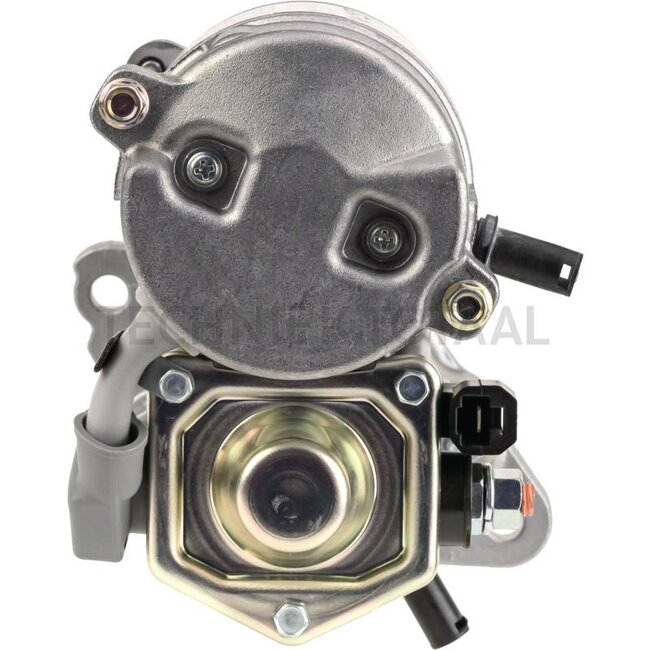

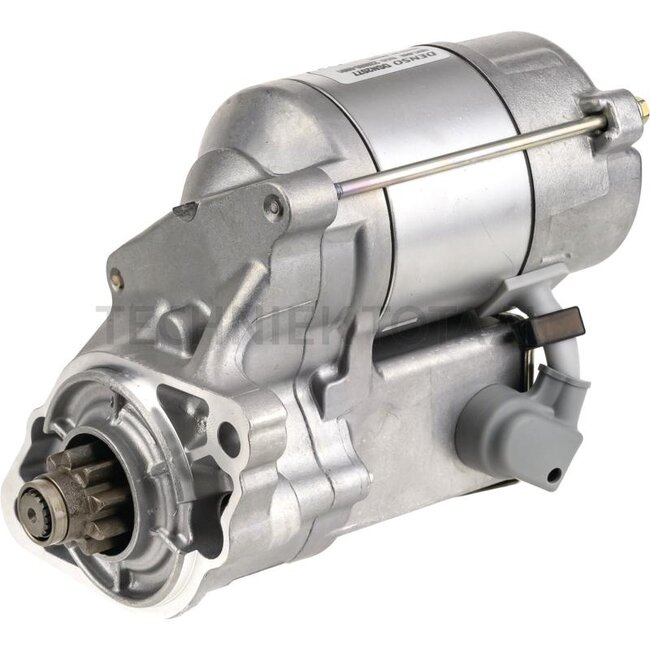

Denso Starter motor with reduction gear 12V 1.4 kW 9 teeth clockwise
Replaces: DSN2077
Technical data:
- Nominal voltage (V): 12
- Nominal power (kW): 1.4
- No. of pinion teeth: 9
- Holes / PCD (mm): 2 x 8.8 / -
- Spacing flange to flywheel (mm): 18.0
- Installation length (mm): 157.0
- Fitting Ø (mm): 66.0
- Installation angle (°): -
- Direction of rotation: clockwise
- Additional information: Connections: terminal 30 (M8), terminal 50 (connector)
Suitable for:
Kubota: KX018-4
