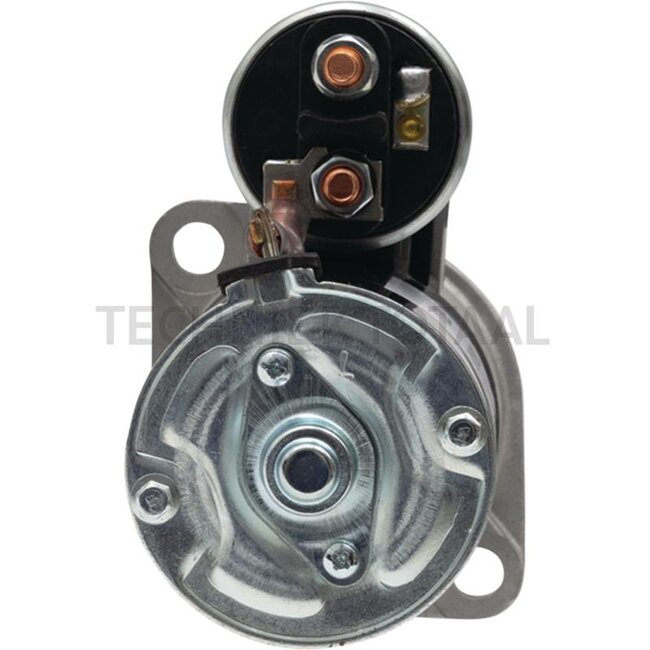

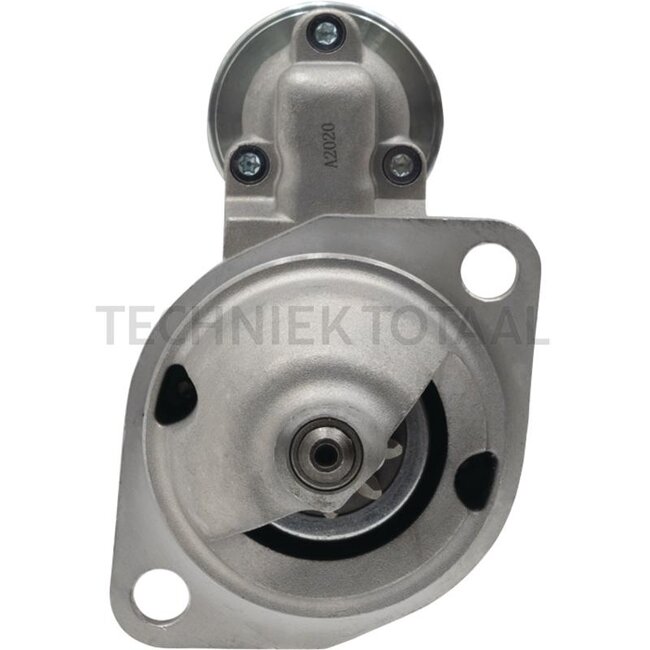

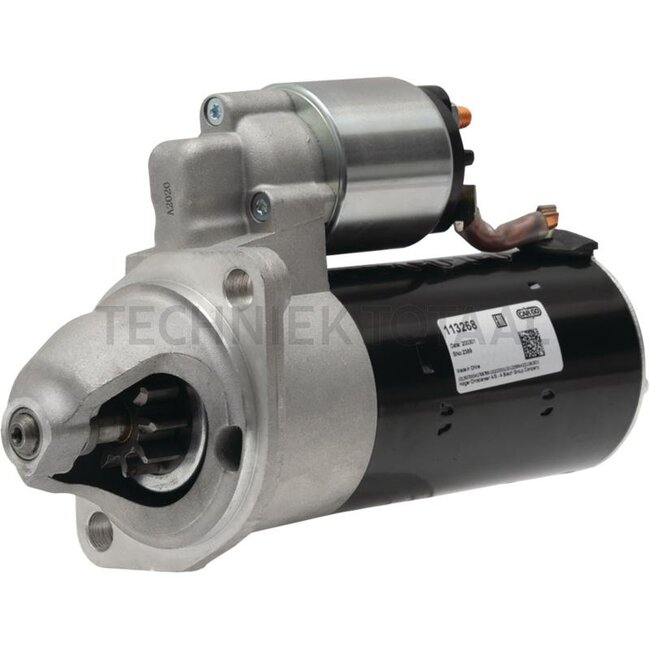

GRANIT Starter motor with reduction gear 12V 1.6 kW 9 teeth counter-clockwise
Replaces: 113268, F032113268
Technical data:
- Nominal voltage (V): 12
- Nominal power (kW): 1.6
- No. of pinion teeth: 9
- Holes / PCD (mm): 2 x 12.5 / 105.0
- Spacing flange to flywheel (mm): 22.0
- Installation length (mm): 195.6
- Fitting Ø (mm): 82.5
- Installation angle (°): -
- Direction of rotation: counter-clockwise
- Additional information: Connections: B+ (M8)
