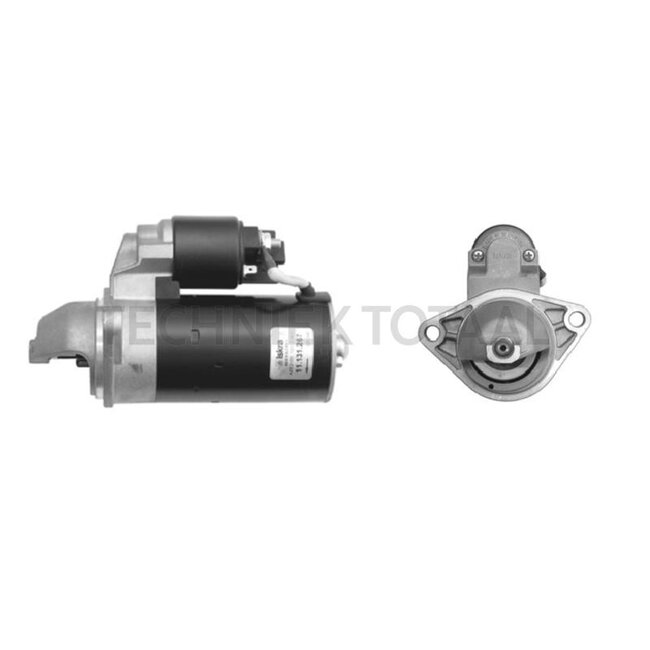

MAHLE Starter motor with reduction gear 12V 2.0 kW 9 teeth clockwise

Replaces: MS 86

Technical data:

• Nominal voltage (V): 12
• Nominal power (kW): 2.0
• No. of pinion teeth: 9
• Holes / PCD (mm): 2 x 11.1 / 105.0
• Spacing flange to flywheel (mm): 24.0
• Installation length (mm): 179.7
• Fitting Ø (mm): 74.0
• Installation angle (°): r 70
• Direction of rotation: clockwise
• Additional information: Eccentric drive bearing cover

Suitable for:

JCB: 406 B (Deutz D2011 L04), 520-40 (Perkins 404C.22 TIER II), 520-40 (Perkins 404D.22 TIER III), 8025 (Perkins 403D-15/-17), 8026 (Perkins 403D-15), 8027 (Perkins 403C-15), 8030 (Perkins 403D-15), 8032 (Perkins 403C-15), 8035 (Perkins 403D-15/-17), 8040 (Perkins 404D-22), 8045 (Perkins 404D-22), 8050 (Perkins 404D-22), 48Z-1 ( Perkins 404D-22 T3 ( 1920451-3047130 )), 55Z-1 ( Perkins 404D-22 T3 ( 1924451-3077290 )), 180T T3 ( Perkins 404D-22 ( 1803999 - 1803999 )), 135W ( Perkins 404D-22 35,7kw ( 2431601 - 3139384 )), 155W T3 ( Perkins 45Kw (2575501 - 3225200 )), 205W T3 ( Perkins 45Kw ( 2473504 - 3225200 ))

Jungheinrich: Diverse

Perkins: GK 403D-15, GL 403D-15T, GN 404D-22

Still: Diverse

Wacker Neuson: 3503-04 (Perkins <- AG01628), 3503-04 (Yanmar <- AG01628), ET65 (Perkins 404D-22T), ET65 (Perkins 404F-22T), ET65 (Perkins 404J-E22T), EW65, EZ53, TH522 (TL48-00)-> Serie 3041820, TH522 (TL48-00)<- Serie 3041821, WL20 (Perkins 403D15), WL28, WL30, WL32, WL34 -> SN 3025886, WL34 <- SN 3025887, WL36, WL44 <- SN 3028247, WL44 CL

Weidemann: 1160 (Perkins 403D-15), 1160 CC35, 1230 CX35 (Perkins 403C), 1230 CX35 (Perkins 403D), 1240 CX35 und CX35 LP (Perkins 403C), 1240 CX35 und CX35 LP (Perkins 403D), 1240 LP (Perkins 403D), 1350 CC45 (Perkins 404C), 1350 CC45 (Perkins 404D), 1350 CX45 (Perkins 404C), 1350 CX45 (Perkins 404D), 1370 CX50, 1380 (Perkins 404D), 1770 CX50 (Perkins 404C) <05.2008, 1770 CX50 (Perkins 404D) <05.2008, 1880 (Perkins 404D), 1880 (Perkins 404F), 2070 CX LP (Perkins 404D), 2070 CX LP (Perkins 404F), 2070 CX LP T, 2070 CX50 (Perkins 404D), 2070 CX50 LP T, 2070 CX50 T, 2070 CX50LP (Perkins 404C), 2070 CX50LP (Perkins 404D), 2080 (Perkins 404D), 2080 (Perkins 404F), 2080 T, 3080 LP, 3080 LP T, T 5522
