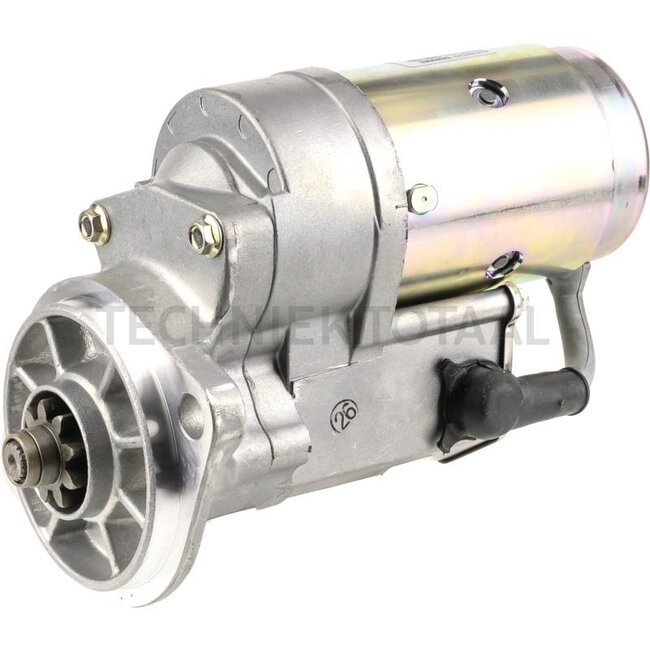

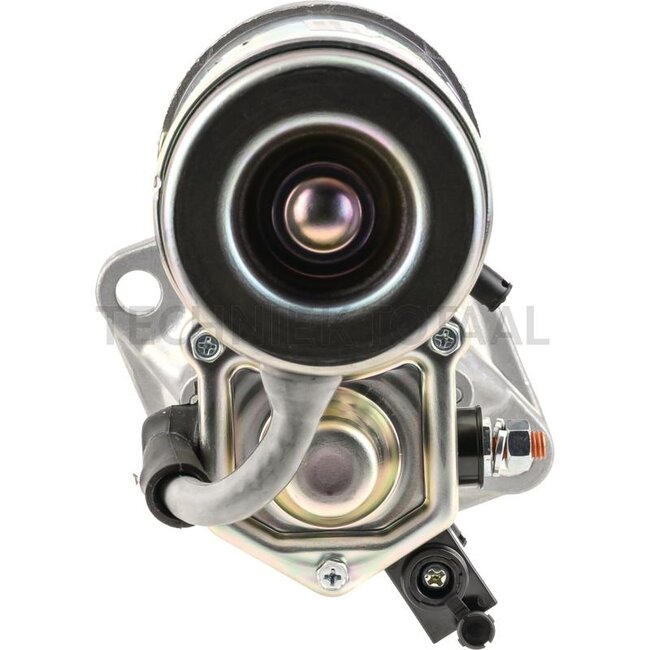

Denso Starter motor with reduction gear 12V 2.2 kW 9 teeth clockwise
Replaces: DSN2062
Technical data:
- Nominal voltage (V): 12
- Nominal power (kW): 2.2
- No. of pinion teeth: 9
- Holes / PCD (mm): 2 x 13.0 / -
- Spacing flange to flywheel (mm): 20.0
- Installation length (mm): 202.0
- Fitting Ø (mm): 95.0
- Installation angle (°): -
- Direction of rotation: clockwise
- Additional information: Connections: terminal 30 (M8), terminal 50 (M5)
Suitable for:
Komatsu: WA100M -6, WA80M -7, WA100M -7
