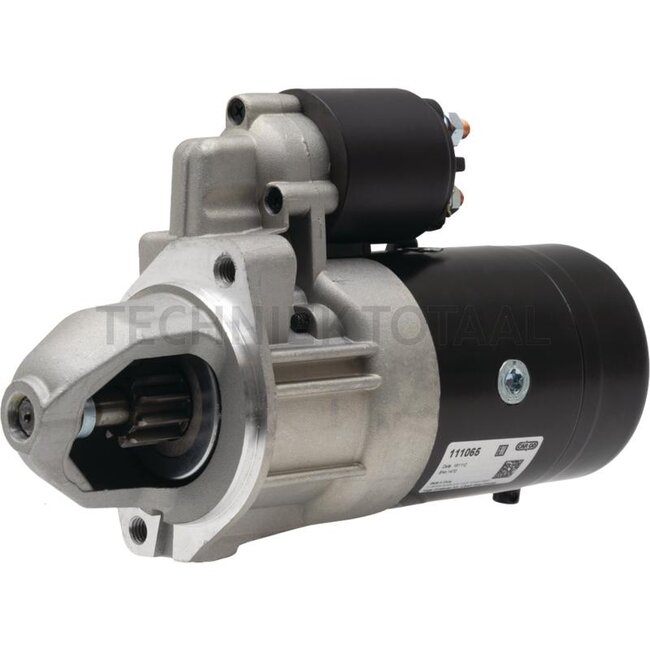

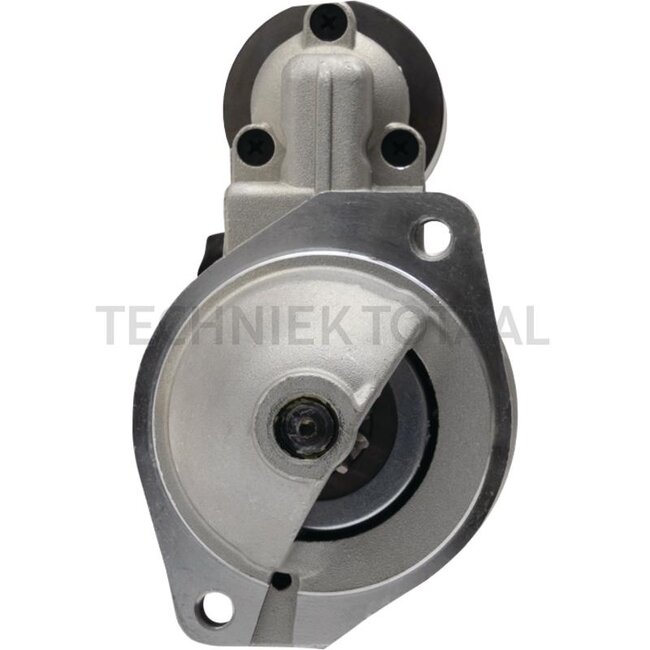

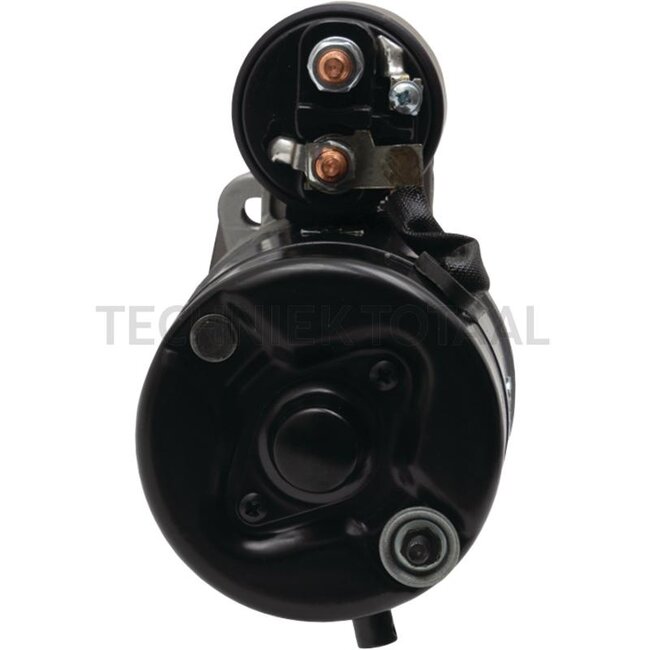

GRANIT Starter motor with reduction gear 12V 2.2 kW 10 teeth clockwise
Replaces: F032111065, 111065
Technical data:
- Nominal voltage (V): 12
- Nominal power (kW): 2.2
- No. of pinion teeth: 10
- Holes / PCD (mm): 2 x M10 / 105.0
- Spacing flange to flywheel (mm): 26.5
- Installation length (mm): 210.5
- Fitting Ø (mm): 82.3
- Installation angle (°): -
- Direction of rotation: clockwise
- Additional information: Connections: B+ (M8)
Suitable for:
Still: Diverse
