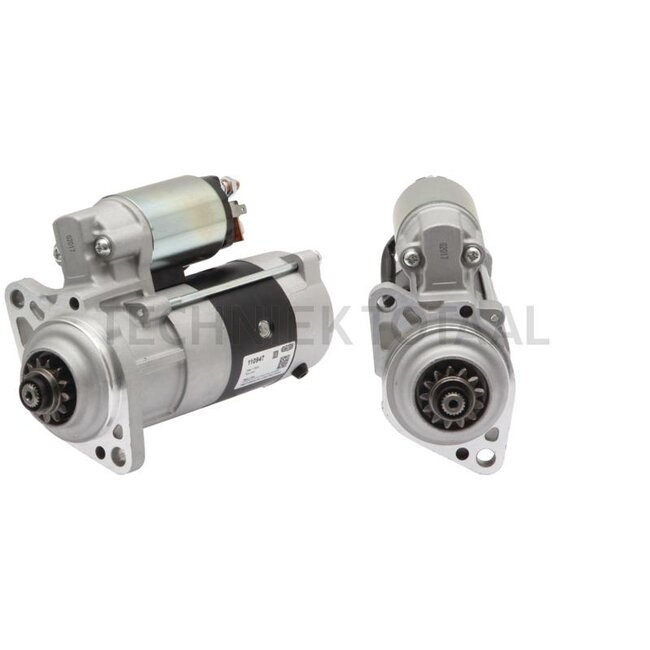

GRANIT Starter motor with reduction gear 12V 2.5 kW 13 teeth clockwise
Replaces: F032110947, 110947
Technical data:
- Nominal voltage (V): 12
- Nominal power (kW): 2.5
- No. of pinion teeth: 13
- Holes / PCD (mm): 2 x 11.5 / 119.0
- Spacing flange to flywheel (mm): 29.0
- Installation length (mm): 199.5
- Fitting Ø (mm): 77.0
- Installation angle (°): -
- Direction of rotation: clockwise
- Additional information: Connections: B+ (M8)
Suitable for:
Caterpillar: 304CR, 305CR (Präfix DGT, DSA)
Volvo CE / BM: EC25, EC30, EC35, EC45
