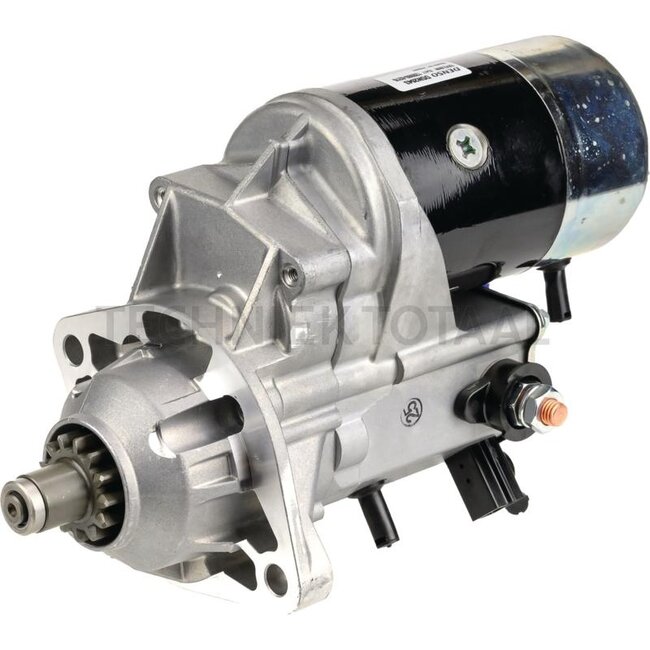

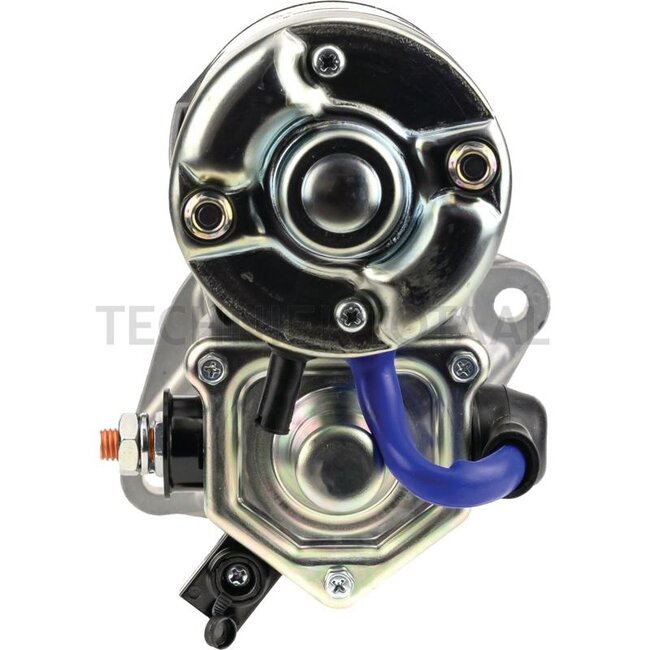

Denso Starter motor with reduction gear 12V 2.5 kW 13 teeth clockwise
Replaces: DSN2043
Technical data:
- Nominal voltage (V): 12
- Nominal power (kW): 2.5
- No. of pinion teeth: 13
- Holes / PCD (mm): 2 x 11.0 / -
- Spacing flange to flywheel (mm): 47.8
- Installation length (mm): 222.0
- Fitting Ø (mm): 89.0
- Installation angle (°): -
- Direction of rotation: clockwise
- Additional information: Connections: terminal 30 (M10), terminal 50 (M5)
Suitable for:
Case IH: 1840, 1845, 40XT, 85XT, 90XT, 95XT
