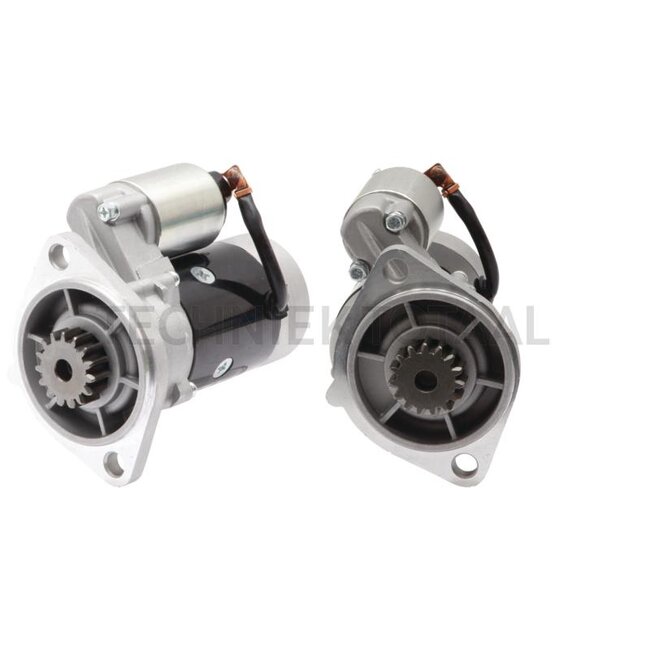

GRANIT Starter motor with reduction gear 12V 2.5 kW 15 teeth clockwise

Replaces: F032112374, 112374

Technical data:

• Nominal voltage (V): 12
• Nominal power (kW): 2.5
• No. of pinion teeth: 15
• Holes / PCD (mm): 2 x 13.0 / 120.0
• Spacing flange to flywheel (mm): 20.0
• Installation length (mm): 206
• Fitting Ø (mm): 95.0
• Installation angle (°): r 60
• Direction of rotation: clockwise
• Additional information: Connections: B+ (M8)

Suitable for:

Hitachi: ZX40, ZX30U-2, ZX35U-2, ZX30U-3, ZX50U-3, ZX33U-5, ZX38U-5, ZX48U-5A, ZX55U-5

Komatsu: SK510 -5, SK714 -5, SK815 -5, SK815 -5EO, SK818 -5, SK820 -5EO, PC27 MR-2, PC30 MR-2, PC30 MR-3, PC35 MR-2, PC35 MR-3, PC45 MR-3, PC50 MR-2, PC55 MR-3, PC45 R-8

Takeuchi: TB28FR (Yanmar 3TNE82A-ETBZ), TB53FR (Yanmar 4TNE88-ETBZ), TB53FR (Yanmar 4TNE88-QTBZ), TB138FR (Yanmar 3TNV88-XTBZ), TB153FR (Yanmar 4TNV88-BPTBZ), TB153FR (Yanmar 4TNV88-PTBZ1), TB125 (Yanmar 3TNE82A-ETB), TB125 (Yanmar 3TNV82A-QTB), TB135 (Yanmar 3TNE88-TB), TB135 (Yanmar 3TNV88-QTB), TB145 (Yanmar 4TNE88-ETB), TB145 (Yanmar 4TNV88-QTB), TB240 (Yanmar 4TNV88C-STB), TB250 (Yanmar 4TNV88-BPTB/1), TB260 (4TNV84T-BPTB), TL120 (Yanmar 4TNV84T-XTBL), TL220 (Yanmar 4TNV84T-ZKTBL)

Volvo CE / BM: EC27C, ECR38

Yanmar: B25V-1 CE2F (3TNE82A-VB1A), SV26 (3TNV82A-BPBVA), SV60-A (4TNV84TZ-MBVA), SV60-B (4TNV86CT-PBVA), VIO30-3 (3TNV82A-XBVA), VIO33U (3TNV82A-NBV2A), VIO35-3 DE2B (3TNV82A-XBVA), VIO38U (3TNV88-BQBVA), VIO50-6A (4TNV88Z-PBV), VIO50-6B (4TNV88C-PBV), VIO50U (4TNV88-BXBVA), VIO55 (4TNE88-EBVC), VIO55 Serial: FA1A (4TNE88-EBVCA), VIO55 Serial: FA2B (4TNV88-XBVA), VIO57-6A (4TNV84TZ-MBV), VIO57-6B (4TNV86CT-PBV), VIO57U (4TNV88-BXBVA)
