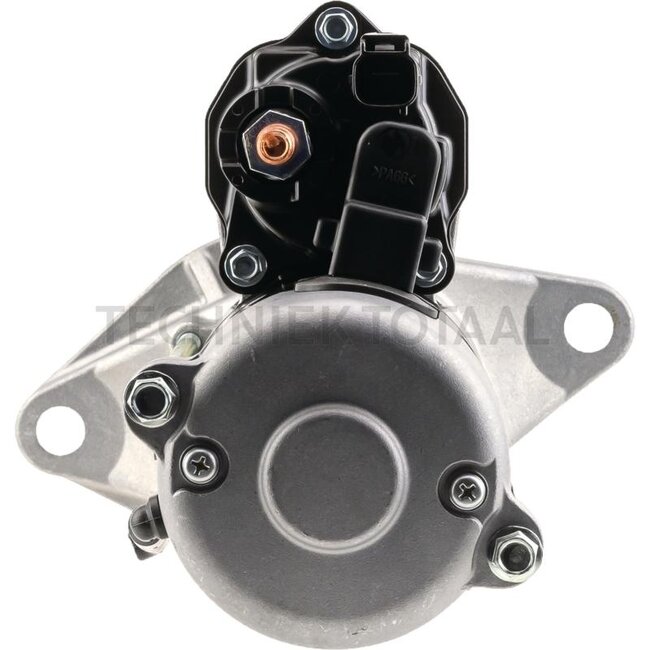

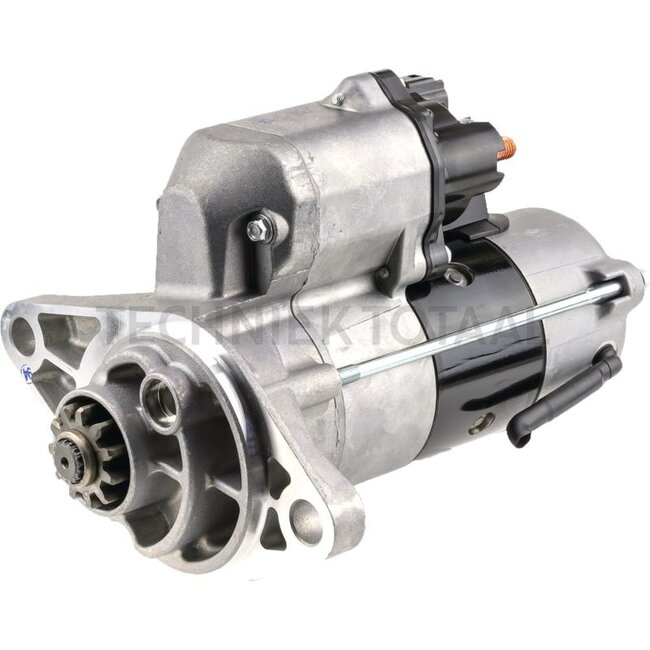

Denso Starter motor with reduction gear 12V 3.0 kW 11 teeth counter-clockwise
Replaces: DSN2095
Technical data:
- Nominal voltage (V): 12
- Nominal power (kW): 3.0
- No. of pinion teeth: 11
- Holes / PCD (mm): 2 x 15.0 / -
- Spacing flange to flywheel (mm): 33.0
- Installation length (mm): 238.0
- Fitting Ø (mm): 94.0
- Installation angle (°): -
- Direction of rotation: counter-clockwise
- Additional information: Connections: terminal 30 (M10), terminal 50 (connector)
