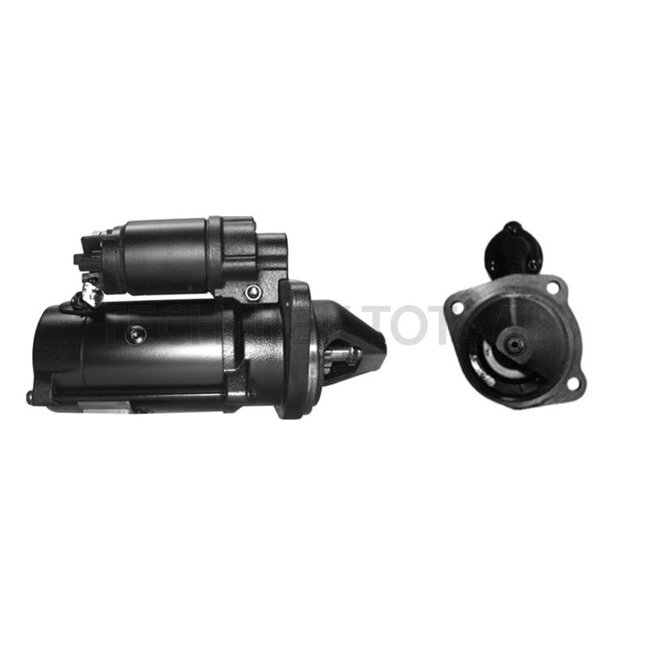

MAHLE Starter motor with reduction gear 12V 3.2 kW 9 teeth clockwise
Replaces: MS 417
Technical data:
- Nominal voltage (V): 12
- Nominal power (kW): 3.2
- No. of pinion teeth: 9
- Holes / PCD (mm): 3 x 11.5 / 127.0
- Spacing flange to flywheel (mm): 29.0
- Fitting Ø (mm): 98.5
- Installation angle (°): r 35
- Direction of rotation: clockwise
Suitable for:
MWM: D 229-3, D 229-6
