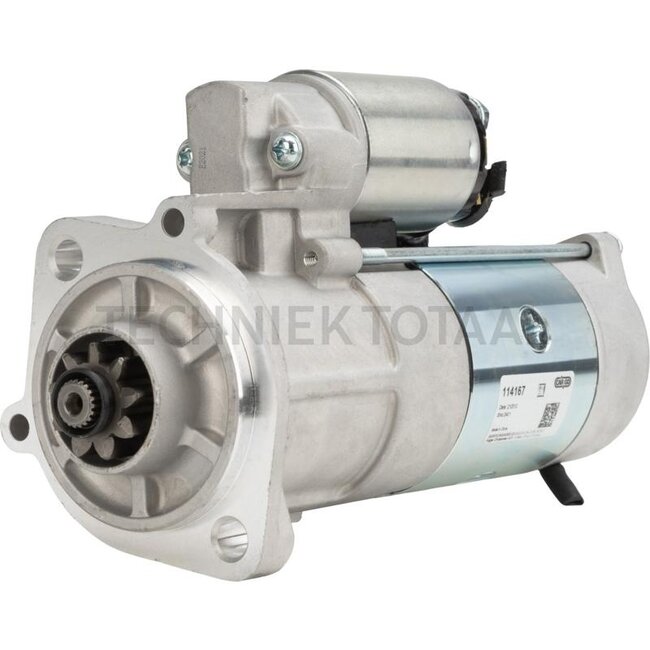

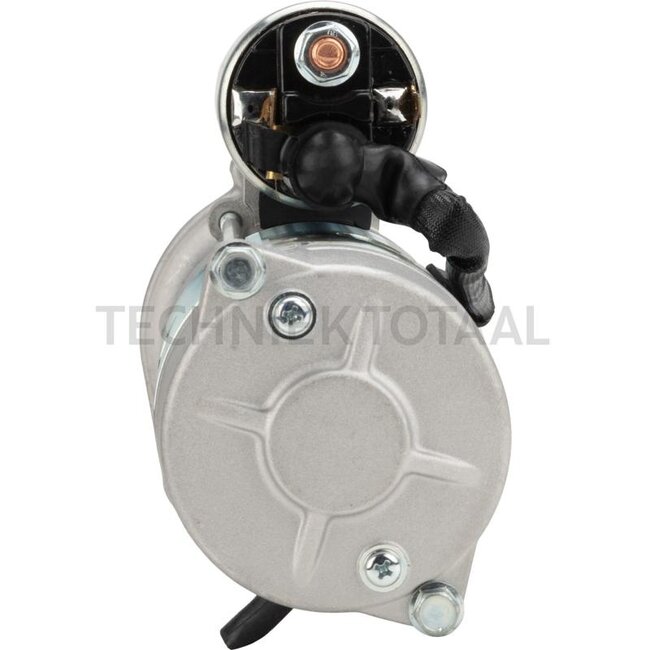

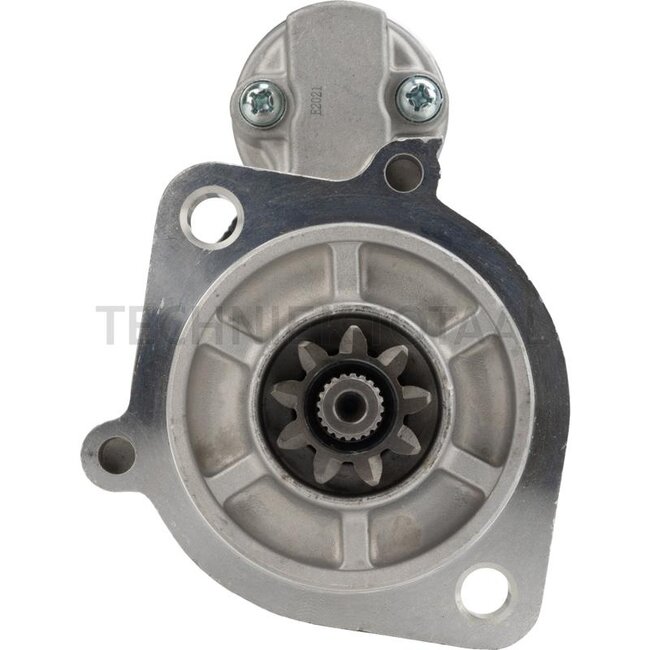

GRANIT Starter motor with reduction gear 12V 3.5 kW 9 teeth clockwise
Replaces: F032114167, 114167
Technical data:
- Nominal voltage (V): 12
- Nominal power (kW): 3.5
- No. of pinion teeth: 9
- Holes / PCD (mm): 2 x 12.0 / 104.0
- Spacing flange to flywheel (mm): 26.5
- Installation length (mm): 253.3
- Fitting Ø (mm): 82.4
- Installation angle (°): -
- Direction of rotation: clockwise
- Additional information: Connections: B+ (M8)
Suitable for:
Schäffer: 870TS (Kubota V3800), 6370T (Kubota V3600), 6390T (Kubota V3600-T), 8100 (Kubota V3800)
Takeuchi: TL250 (Kubota V3800DI-T-E3B-TLTU)
