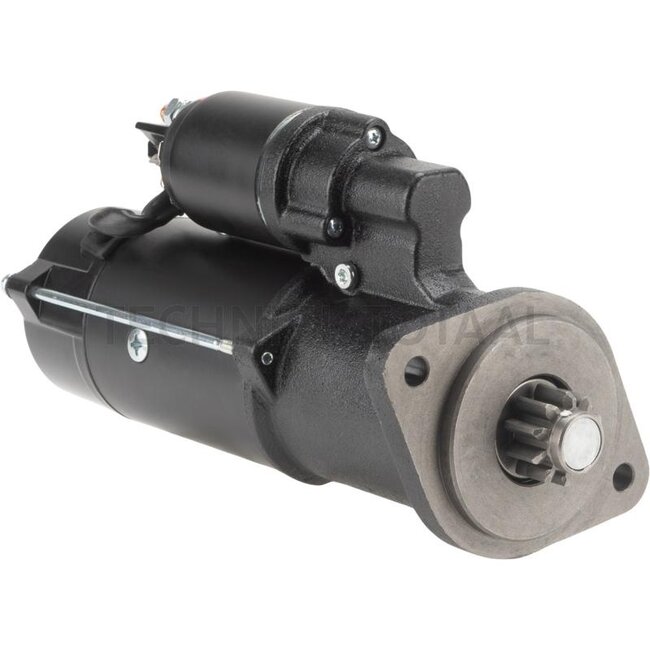

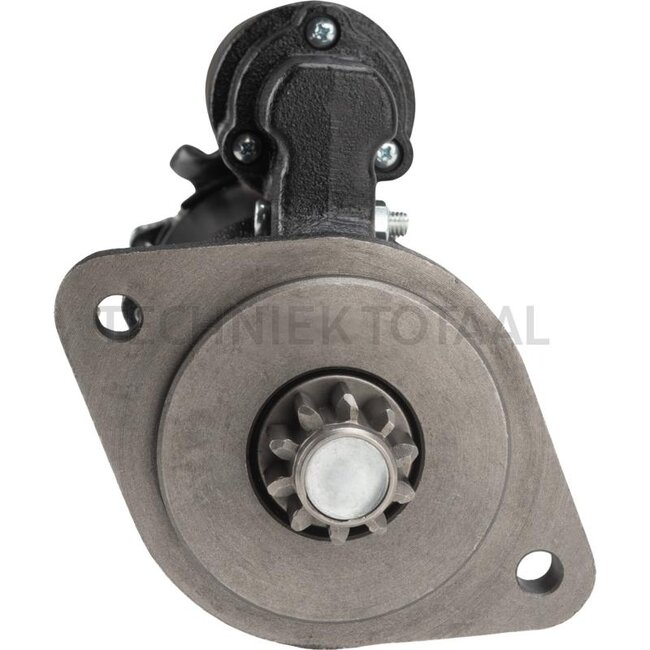

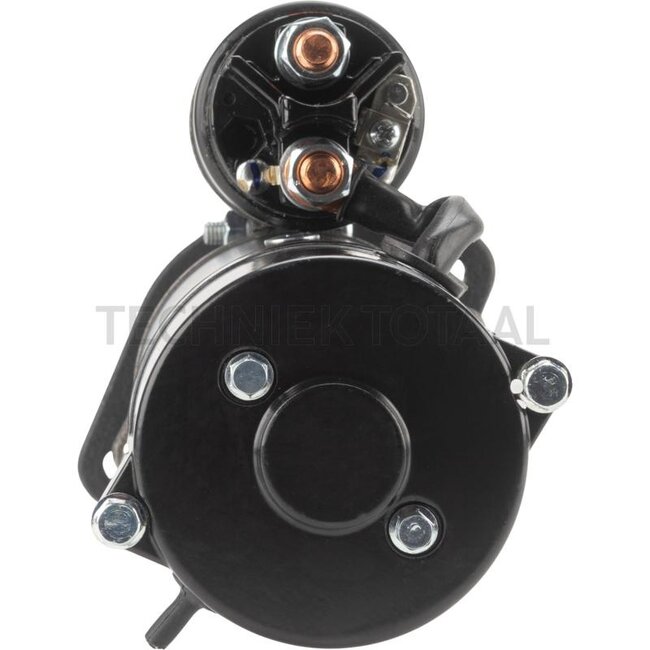

GRANIT Starter motor with reduction gear 12V 4.0 kW 10 teeth clockwise
Technical data:
- Nominal voltage (V): 12
- Nominal power (kW): 4.0
- No. of pinion teeth: 10
- Holes / PCD (mm): 2x 10.8 / 127
- Spacing flange to flywheel (mm): 26.0
- Installation length (mm): 295.0
- Fitting Ø (mm): 89.0
- Installation angle (°): 30
- Direction of rotation: clockwise
