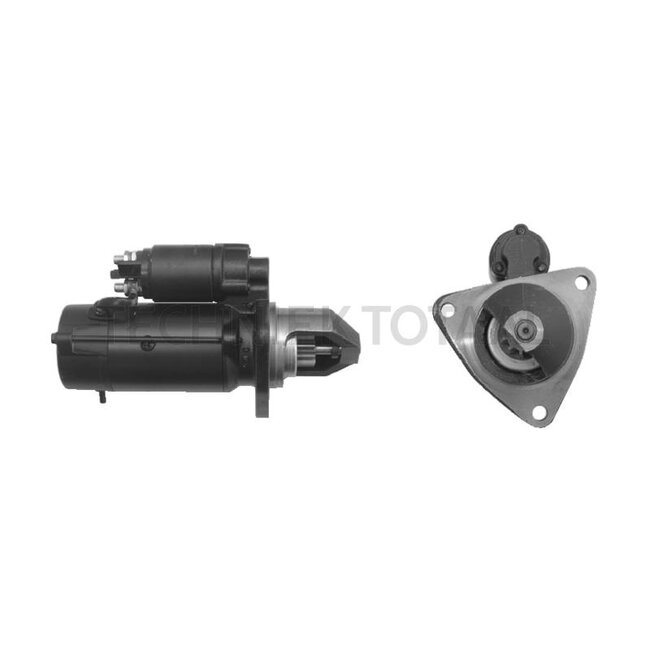

MAHLE Starter motor with reduction gear 12V 4.2 kW 10 teeth clockwise

Replaces: MS 117

Technical data:

• Nominal voltage (V): 12
• Nominal power (kW): 4.2
• No. of pinion teeth: 10
• Holes / PCD (mm): 3 x 13.5 / 146.0
• Spacing flange to flywheel (mm): 51.0
• Installation length (mm): 225.0
• Fitting Ø (mm): 92.0
• Installation angle (°): r 48
• Direction of rotation: clockwise
• Additional information: Eccentric drive bearing cover

Suitable for:

Case IH: 2090, 2290, 2390, 2094, 2294, 2394, 2594, 3294, 3394, 3594, 1896, 2096, 1800, 1822, 1844, 2022, 2044, 2055, 2155, 2555, 1644, 1666, 1670, 1688, 2144, Magnum 7110, Magnum 7120, Magnum 7130, Magnum 7140, Magnum 7150, Magnum 7210, Magnum 7210 Pro, Magnum 7220, Magnum 7220 Pro, Magnum 7230, Magnum 7230 Pro, Magnum 7240, Magnum 7240 Pro, Magnum 7250, Magnum 7250 Pro, Magnum 8910, Magnum 8920, Magnum 8930, Magnum 8940, Magnum 8950, MX 210 Magnum, MX 230 Magnum, MX 255 Magnum, MX 285 Magnum, Patriot Sprayer 4420 (8/06-9/11), SPX4260 (4/99-11/01), SPX4260 (11/01-6/04), SPX4410 (6/04-8/06), Steiger 9110 (7/89-8/90), Steiger 9130 (7/89-8/90), Steiger 9210 (9/90-5/95), Steiger 9230 (9/90-5/95), Steiger 9240 (10/90-10/94), Steiger 9250 (9/90-5/95), Steiger 9260 (10/90-10/94), Steiger 9310, Steiger 9330
