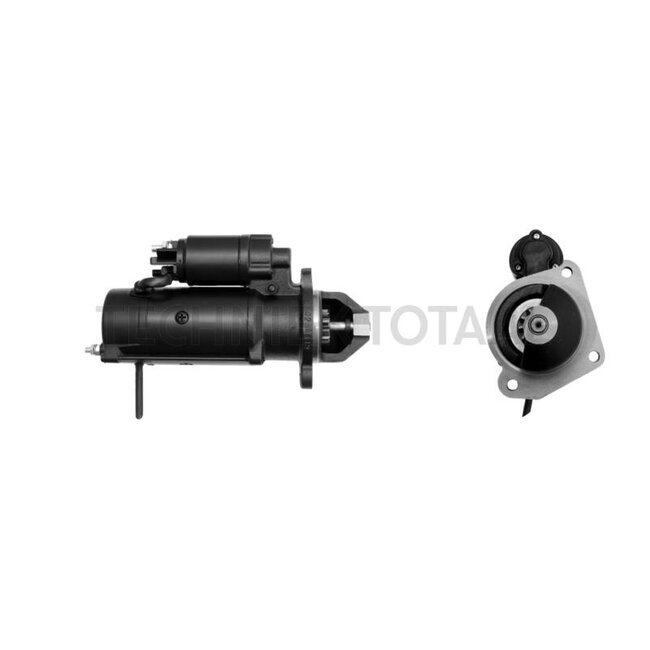

MAHLE Starter motor with reduction gear 12V 4.2 kW 11 teeth clockwise

Replaces: MS 84

Technical data:

• Nominal voltage (V): 12
• Nominal power (kW): 4.2
• No. of pinion teeth: 11
• Holes / PCD (mm): 3 x 10.9 / 127.0
• Spacing flange to flywheel (mm): 24.0
• Fitting Ø (mm): 89.0
• Installation angle (°): r 29
• Direction of rotation: clockwise
• Additional information: Earth: terminal 31

Suitable for:

JCB: 3CX Super Precision Control (Servo) ( Dieselmax 68kw ( 0960000-1709999 )), 4CX Precision Control (Servo) ( Dieselmax 74kw ( 0960000-1709999 )), 526-56 (JCB 444), 531-70 (JCB 444 DieselMax TIER II), 531-70 (JCB 444 DieselMax TIER III), 535-95 (JCB 444 DieselMax TIER II), 535-95 (JCB 444 DieselMax TIER III), 535-125 HiViz (JCB 444 EcoMax), 535-140 HiViz (JCB 444 Dieselmax 74kw), 540-140 (JCB 444 DieselMax TIER II), 540-140 (JCB 444 DieselMax TIER III), 540-170 (JCB 444 DieselMax TIER II), 540-170 (JCB 444 DieselMax TIER III), 541-70 (JCB 444 DieselMax TIER II), 541-70 (JCB 444 DieselMax TIER III), 225T T4 ( Ecomax TCA 55kw ( 2196001 - 2201001 )), 260T T3 ( Ecomax TCA 55kw ( 2427501 - 2556850 )), 300T T4 ( Ecomax TCA 55kw ( 2478301 - 3108862 )), 325T T4 ( Ecomax 55kw ( 2478301-2886725 )), 225W T3 (Ecomax TCAE 55kw ( 2427501 -2556850 )), 270W T3 ( Ecomax TCAE 55kw ( 2675500 - 3146404 )), 280W T4 ( Ecomax TCAE 55Kw ( 2427801 - 2584840 )), 300W T3 ( 444 68Kw ( 2675500 - 3146404 )), 330W T4 ( Ecomax TCAE 55Kw (2427801 - 2584840 ))
