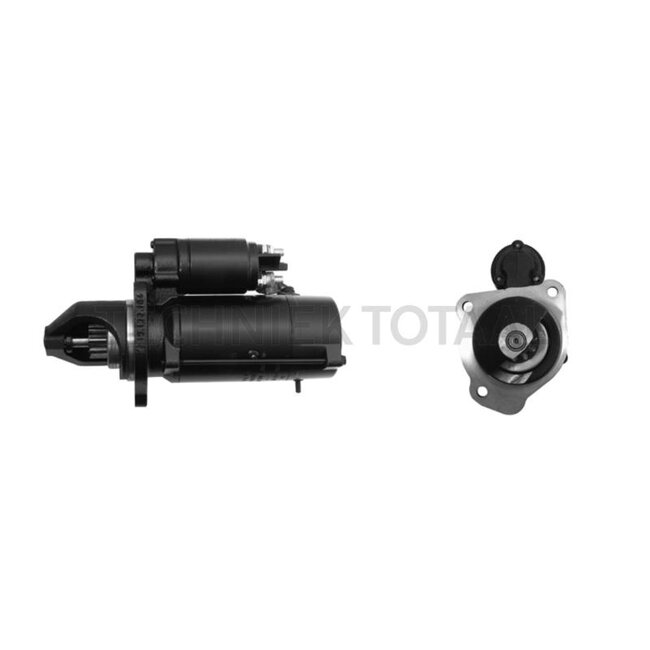

Gear reduction starter from MAHLE with a nominal voltage of 12 V and a nominal power of 4.2 kW. The starter motor has 10 teeth and is clockwise. The mounting has 3 holes with a PCD of 127.0 mm and a flange-to-flywheel spacing of 51.0 mm. The installation length is 225.0 mm, the fitting Ø 89.0 mm and the installation angle l 55°. Fits John Deere.
Reference numbers:MS 416
6506, 6600, 6800, 6900, 6505, 6510, 6610, 6810, 6910, 6910S, SE6510, SE6610, 6215, 6515, 6715, 6520, 6620, 6820, 6920, 6920S, SE6520, SE6620, SE6920, 6130, 6230, 6230 PR, 6330, 6330 PR, 6430, 6430 PR, 6530, 6530 PR, 6534, 6534 PR, 6630 PR, 6830, 6830 PR, 6930, 6930 PR, 7430 PR, 7530 PR
| Article number | 379IS1157 |
|---|---|
| EAN | 4059139189519 |
| Weight | 10,91 kg |
| Nominal voltage | 12 V |
| Nominal power | 4.2 kW |
| No. of pinion teeth | 10 |
| Holes / PCD | 3 x 10.9 / 127.0 mm |
| Spacing flange to flywheel | 51.0 mm |
| Installation length | 225.0 mm |
| Fitting Ø | 89.0 mm |
| Installation angle (°) | l 55 |
| Direction of rotation | clockwise |
