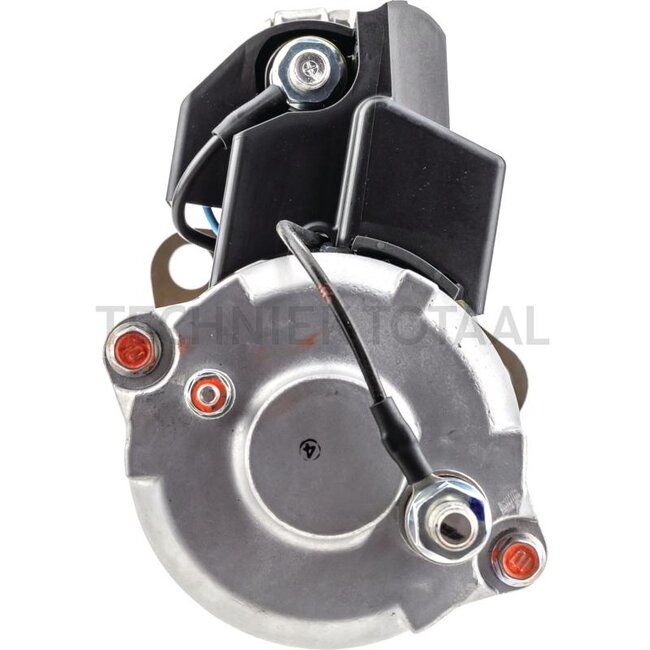

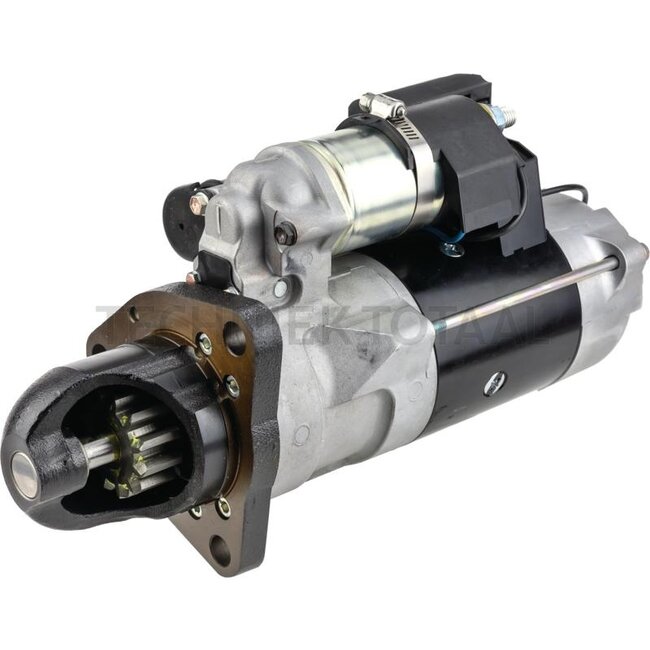

Denso Starter motor with reduction gear 12V 5.0 kW 12 teeth clockwise
Replaces: DSN2070
Technical data:
- Nominal voltage (V): 12
- Nominal power (kW): 5.0
- No. of pinion teeth: 12
- Holes / PCD (mm): 3 x 16.7 / -
- Spacing flange to flywheel (mm): 46.8
- Installation length (mm): 242.0
- Fitting Ø (mm): 92.0
- Installation angle (°): -
- Direction of rotation: clockwise
- Additional information: Connections: terminal 30 (M14), terminal 50 (M5)
