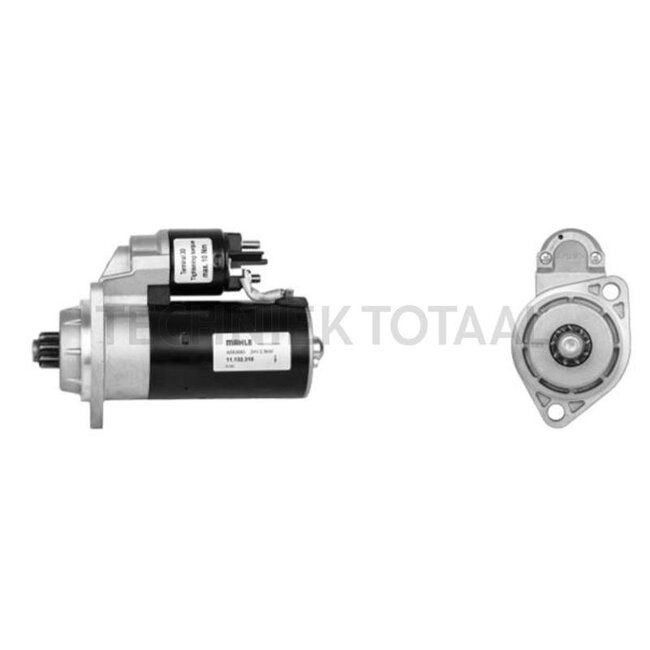

MAHLE Starter motor with reduction gear 24V 2.5 kW 9 teeth counter-clockwise
Replaces: MS 161
Technical data:
- Nominal voltage (V): 24
- Nominal power (kW): 2.5
- No. of pinion teeth: 9
- Holes / PCD (mm): 2 x 12.5 / 105.0
- Spacing flange to flywheel (mm): 32.0
- Fitting Ø (mm): 82.5
- Installation angle (°): r 38
- Direction of rotation: counter-clockwise
- Additional information: Freely ejecting (without transmission bell housing), eccentric drive bearing cover
Suitable for:
Hatz: 1D41, 1D42, 1D50
