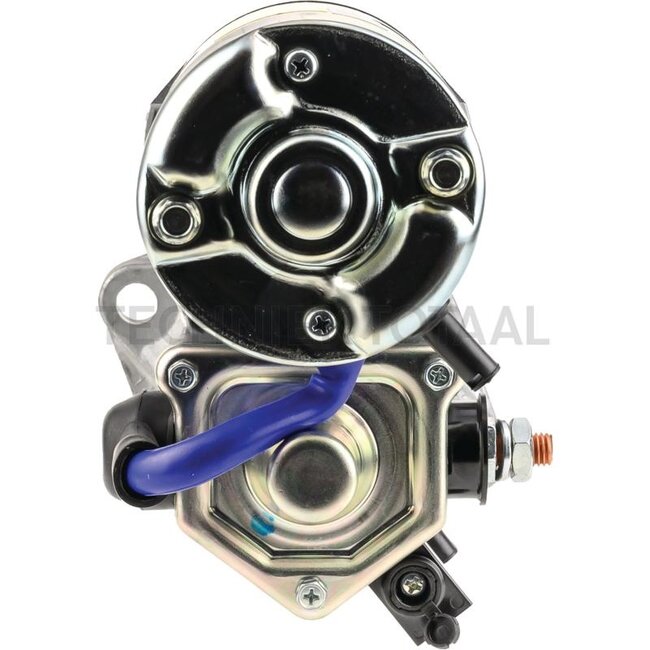

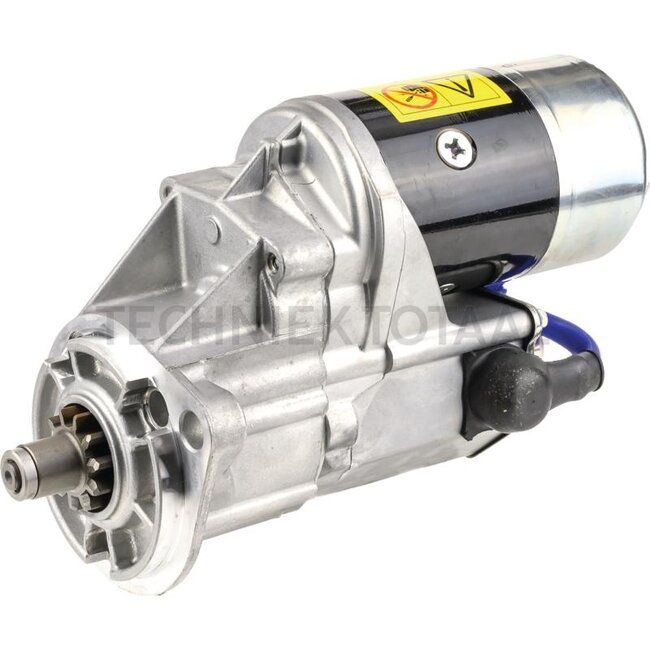

Denso Starter motor with reduction gear 24V 4.5 kW 11 teeth clockwise
Replaces: DSN2057
Technical data:
- Nominal voltage (V): 24
- Nominal power (kW): 4.5
- No. of pinion teeth: 11
- Holes / PCD (mm): 2 x 13.0 / -
- Spacing flange to flywheel (mm): 20.0
- Installation length (mm): 249.0
- Fitting Ø (mm): 95.0
- Installation angle (°): -
- Direction of rotation: clockwise
- Additional information: Connections: terminal 30 (M10), terminal 50 (M5)
Suitable for:
Komatsu: PW98 MR-8, PW118 MR-8, PC130 -8, PW98 MR-10, D37 EX-22, D37 EX-24/EXi-24, PC88 MR-8, PC88 MR-10, PC118 MR-8, PC138 US-8, PC138 US-10
