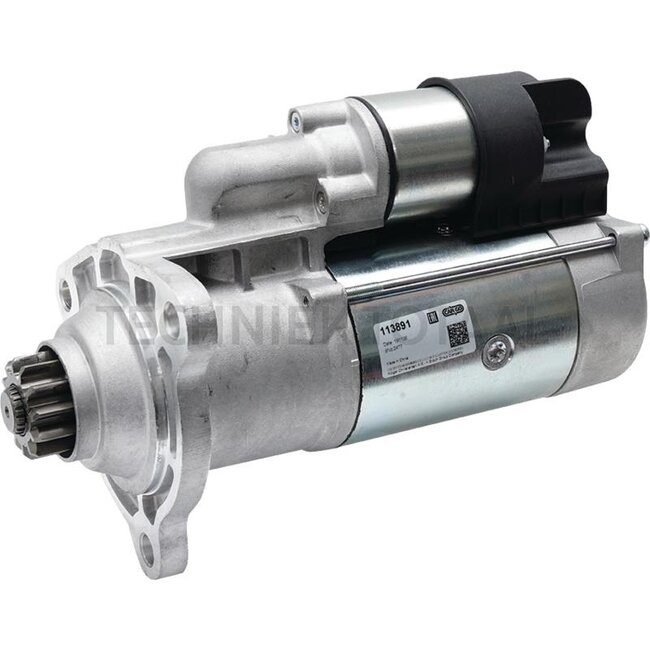

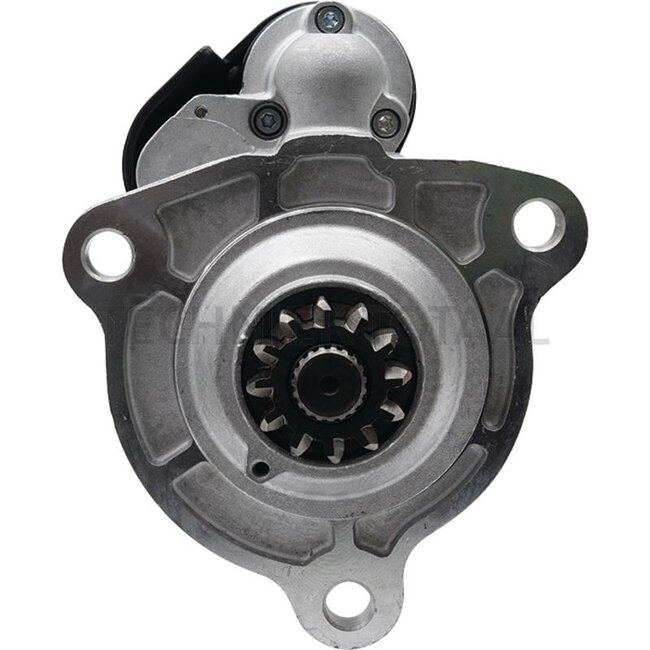

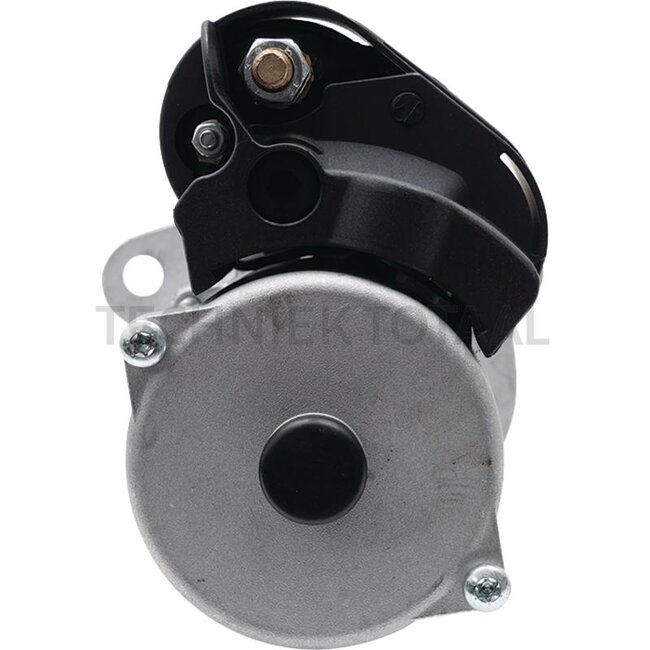

GRANIT Starter motor with reduction gear 24V 5.5 kW 12 teeth clockwise
Replaces: F032113891, 113891
Technical data:
- Nominal voltage (V): 24
- Nominal power (kW): 5.5
- No. of pinion teeth: 12
- Holes / PCD (mm): 3 x 13.5 / 126.5
- Spacing flange to flywheel (mm): 48.0
- Installation length (mm): 272.5
- Fitting Ø (mm): 92.0
- Installation angle (°): -
- Direction of rotation: clockwise
- Additional information: Connections: B+ (M10)
