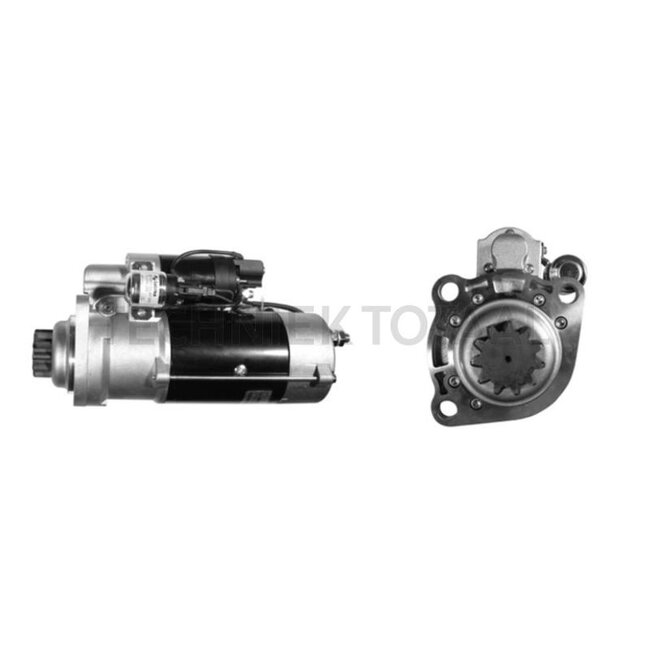

MAHLE Starter motor with reduction gear 24V 6.5 kW 11 teeth clockwise
Replaces: MS 46
Technical data:
- Nominal voltage (V): 24
- Nominal power (kW): 6.5
- No. of pinion teeth: 11
- Holes / PCD (mm): 3 x 16.7 / 146.0
- Spacing flange to flywheel (mm): 51.0
- Fitting Ø (mm): 92.0
- Installation angle (°): l 45
- Direction of rotation: clockwise
- Additional information: Freely ejecting (without transmission bell housing), with auxiliary start relay, insulated earth
