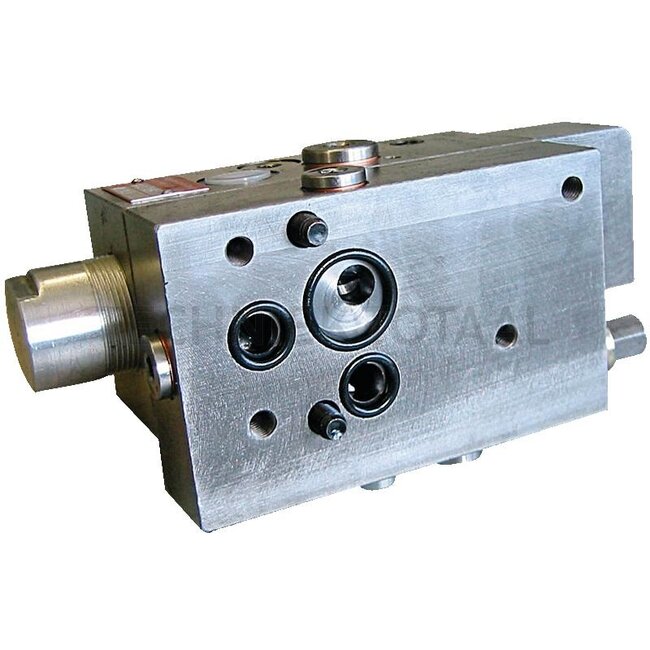

GRANIT Control valve
AK system single-acting/double-acting (with lever)
Replaces: 19038
Technical data:
- Connection thread: M18 x 1,5
- Fixing bolt tightening torque Nm: 30
- Viscosity: 10...20 mm2/s

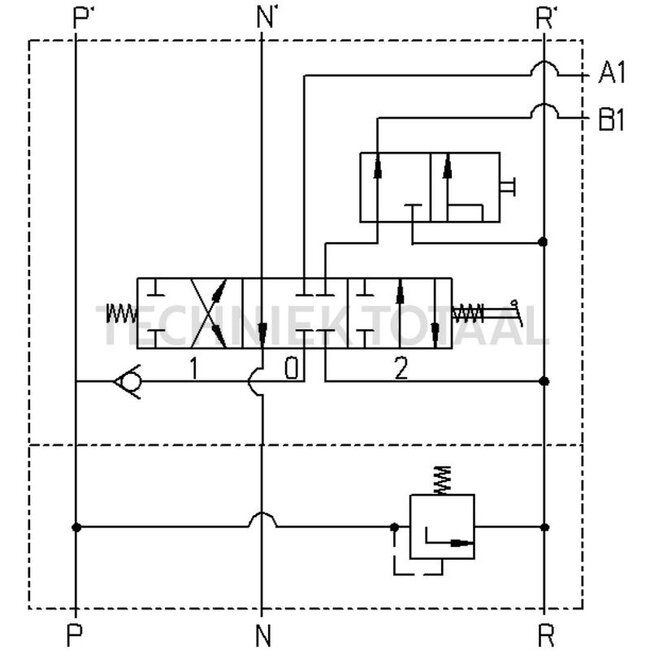

- Description: This auxiliary control unit is a 5/3 way valve, manually operated for controlling single-acting and double-acting cylinders and hydraulic motors. It consists of a basic valve and a directional valve. The directional control valve is designed as an end valve and can be changed from single-acting to double-acting and vice versa. It is a gate-sealed control valve with neutral fine control that allows very low fit leakage, even at the highest pressure. The directional control valve is designed in flange construction and can be extended by the flange valve with a double-acting function.
- Nominal flow rate (l/min.): 50
- Operating temperature (°C): -20...+80
- Operating pressure max. (bar): 210
- Dimensions: 210 x 85 x 80 mm
- Max. operating pressure: 210 bar Nominal flow rate: max. 50 l/min. Tightening torque: 30 Nm Connections: M18 x 1.5 Dimensions: 200 x 75 x 75 mm
Suitable for:
Massey Ferguson: 354, 364, 374, 384, 394
