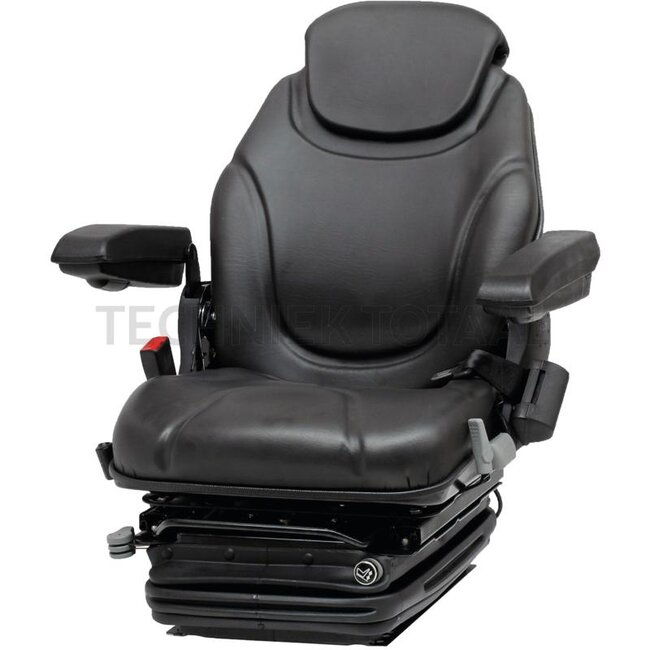

Tractor seat with air suspension and PVC upholstery, designed for an on-board voltage of 12 V. The driver's weight is adjusted automatically between 50 kg and 130 kg (APS). The suspension travel is 140 mm, provided by an air spring and hydraulic shock absorber. The seat features horizontal suspension with damper up to 35 mm travel, a longitudinal adjustment of 190 mm and a back adjustment of 30° to 85°. It also has an adjustable headrest, adjustable armrests, a mechanical lumbar support, a document box, an automatic seat belt, a 360° turntable and a seat heater.
| Article number | 24000123 |
|---|---|
| EAN | 4059139133642 |
| Weight | 100 kg |
| Technical data | • Automatic weight adjustment from 50 kg to 130 kg (APS) • Suspension travel 140 mm (air spring and hydraulic shock absorbers) • Longitudinal adjustment 190 mm • Back adjustment 30° - 85° • Adjustable back extension, adjustable armrests • Horizontal suspension with damper up to 35 mm travel • Mechanical lumbar support • Document box • Automatic seat belt • 360° turntable • Seat heater |
| Suspension | Air suspension (with hydraulic shock absorbers) |
| Upholstery type | PVC |
| Seat contact switch | Yes |
| Rotation | Yes |
| Restraint system | Automatic seat belt |
| On-board voltage | 12 V |
| Seat heater | Yes |
