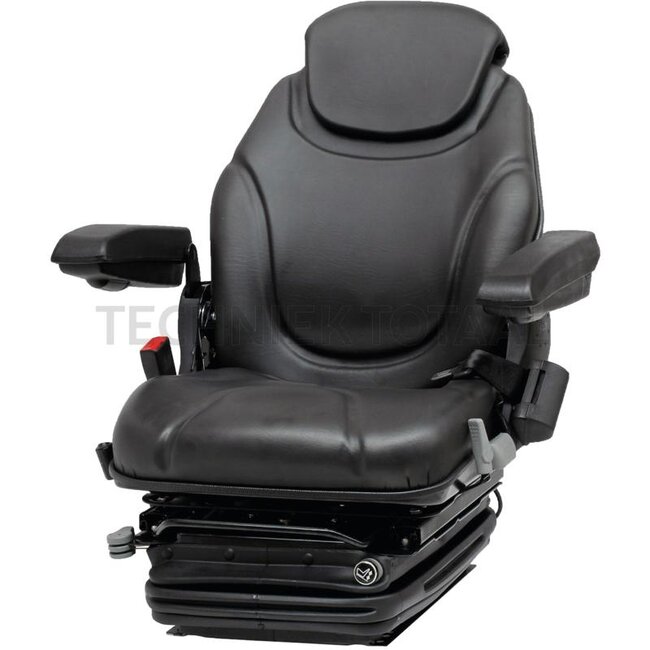

GRANIT Super comfort seat air suspended PVC, seat width 480 mm | YPV1-LX-PVC-BLACK
GRANIT 9,4688 reviews
(0)
GRANIT Super comfort seat air suspended PVC, seat width 480 mm | YPV1-LX-PVC-BLACK
GRANIT 9,4688 reviews
0 reviews

GRANIT Super comfort seat air suspended PVC, seat width 480 mm | YPV1-LX-PVC-BLACK

€1.228,50 Incl. 21% VAT
€1.015,29 Excl. VAT
In stock

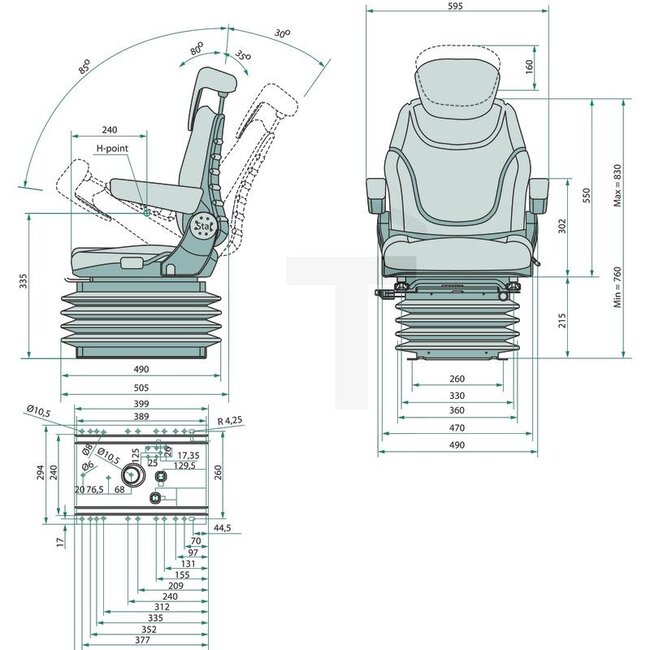

Technical data: - Automatic weight adjustment 50 kg to 130 kg (APS), - Spring travel 140 mm (air spring and hydraulic shock absorbers), - Longitudinal adjustment 190 mm, ● Backrest adjustment 30° - 85°, - Comfort upholstery with high abrasion resistance, Read more.

Found in category:
Tractor & vehicle› Seats and accessories› Tractor seat air-suspended

Larger quantity required?



Any questions about this product?
Or do you need any help ordering? Feel free to get in touch with our support department at [email protected]. We're happy to help!

Product description

Super comfort seat

  • Technical data: - Automatic weight adjustment 50 kg to 130 kg (APS)
    - Spring travel 140 mm (air spring and hydraulic shock absorbers)
    - Longitudinal adjustment 190 mm
    ● Backrest adjustment 30° - 85°
    - Comfort upholstery with high abrasion resistance
    ● Adjustable backrest extension Adjustable armrests
    ● Horizontal suspension with damper up to 35 mm travel
    ● Mechanical lumbar support
    ● Document box
    ● Automatic seat belt
    ● 360° swivel plate
    ● Seat heating
    ● Hydraulic longitudinal horizontal suspension
  • Suspension: Air-sprung
  • Track gauge (mm): 260
  • Gauge: 260
  • Upholstery type: PVC
  • Seat contact switch: Optional
  • Rotation: Yes
  • Seat width (mm): 480
  • Joystick console: No
  • Side horizontal suspension: No
  • Restraint system: Optional
  • On-board voltage (V): 12
  • Seat heater: Yes

    • Further information

    Article number
    24000092
    EAN Code
    4059139133635
    SKU
    24000092
