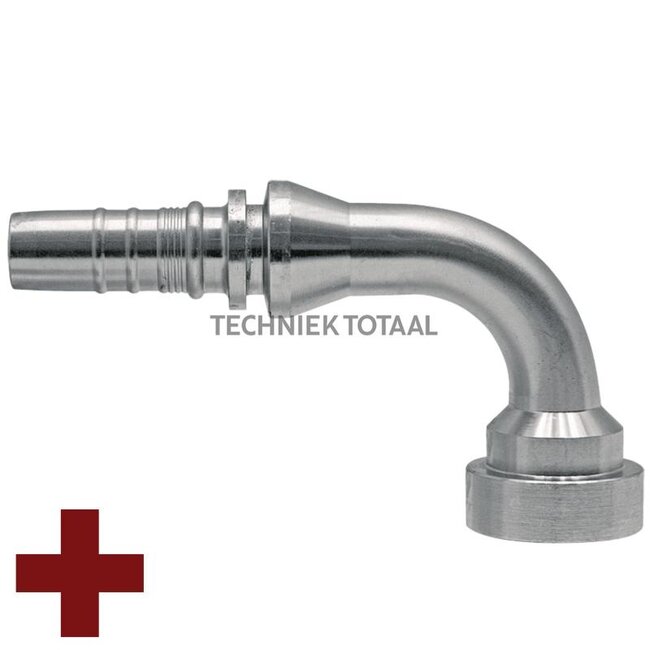

Manuli Swage fitting Interlock CAT SAE flange 1 1/4", 90° long, DN 31

Swage fitting INTERLOCK / INTERLOCK PLUS

Replaces: M43990-20-20150

Technical data:

• B (mm): 32.0
• Series: 9000 PSI
• A (mm): 98.5
• S (mm): 14.3
• O-ring: 37.7 x 3.5
• Nominal width: DN 31 - 1 1/4"
• Type formula: SFS 90°
• D (mm): 54.0
• E (mm): 150.0
• Comparison no.: M43990-20-20150
• D (inches): 1 1/4”
• Description: SAE flange, heavy, 90°
• Flange: 1 1/4”
