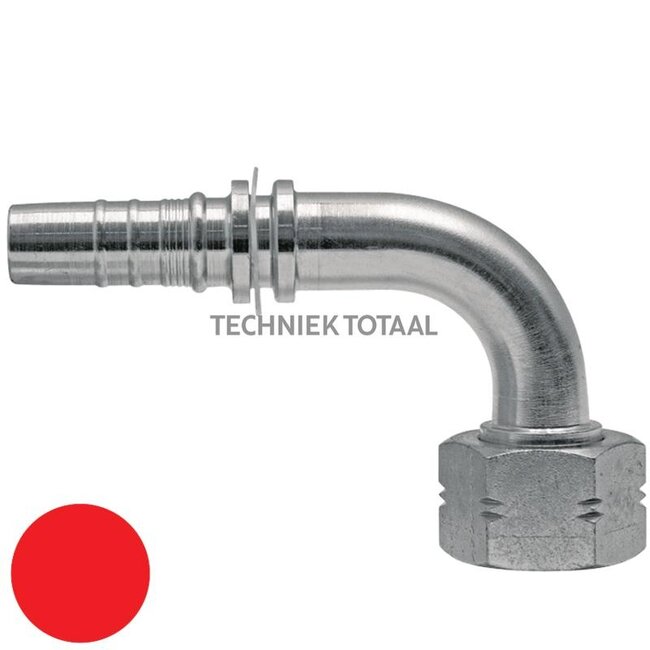

Manuli Swage fitting Interlock heavy cone M30 x 2, 90° long, DN 16

Swage fitting INTERLOCK / INTERLOCK PLUS

Replaces: M41293-10-30

Technical data:

• Thread: M30 x 2
• H2 (mm): 36
• Nominal width: DN 16 - 5/8"
• C (mm): 3.5
• B (mm): 12
• A (mm): 53
• Comparison no.: M41293-10-30
• E (mm): 60
• Pipe (mm): 20
