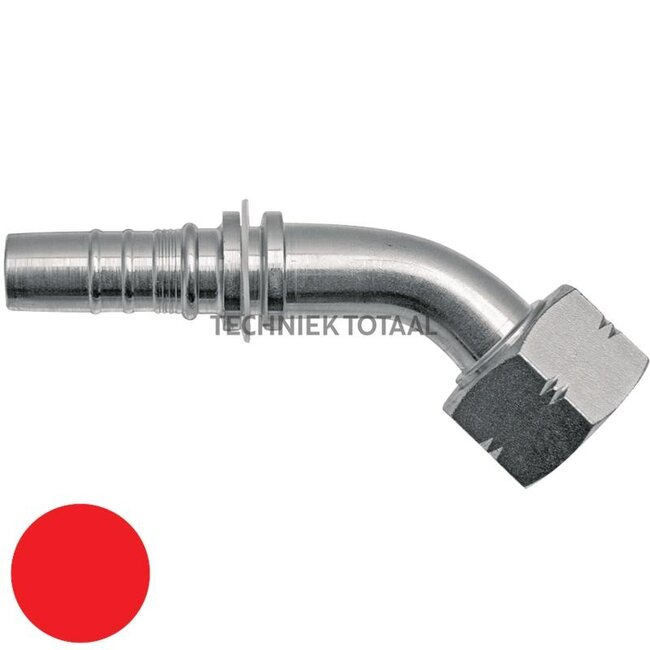

Manuli Swage fitting Interlock heavy cone M36 x 2, 45° long, DN 19

Swage fitting INTERLOCK / INTERLOCK PLUS

Replaces: M41243-12-36

Technical data:

• Nominal width: DN 19 - 3/4"
• Pipe (mm): 25
• H2 (mm): 41
• C (mm): 3.4
• A (mm): 101
• Comparison no.: M41243-12-36
• B (mm): 14.5
• Thread: M36 x 2
• E (mm): 45
