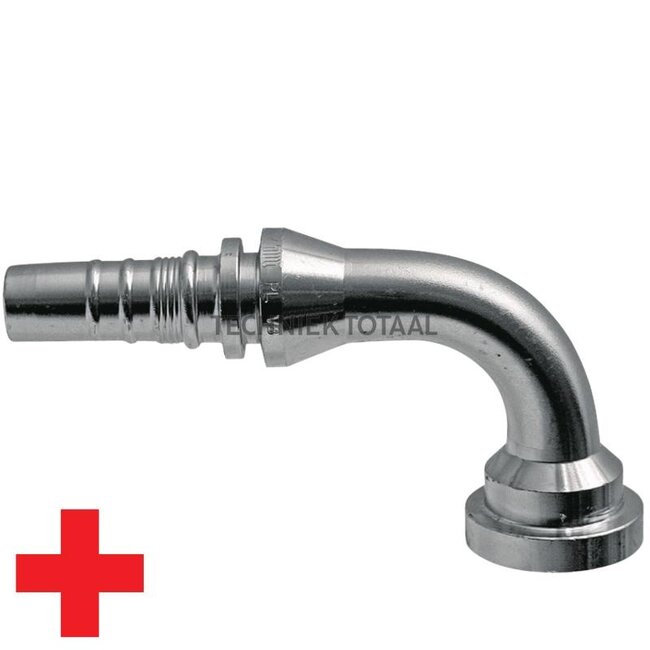

Manuli Swage fitting Interlock heavy SAE flange 1 1/4", 90°, DN 31

Swage fitting INTERLOCK / INTERLOCK PLUS

Replaces: M43690-20-20

Technical data:

• D (inches): 1 1/4”
• E (mm): 81.0
• Description: SAE flange, heavy, 90°
• A (mm): 98.5
• D (mm): 54.2
• Nominal width: DN 31 - 1 1/4"
• Flange: 1 1/4”
• Type formula: SFS 90°
• Comparison no.: M43690-20-20
• Series: 6000 PSI
• O-ring: 37.7 x 3.5
• B (mm): 26.0
