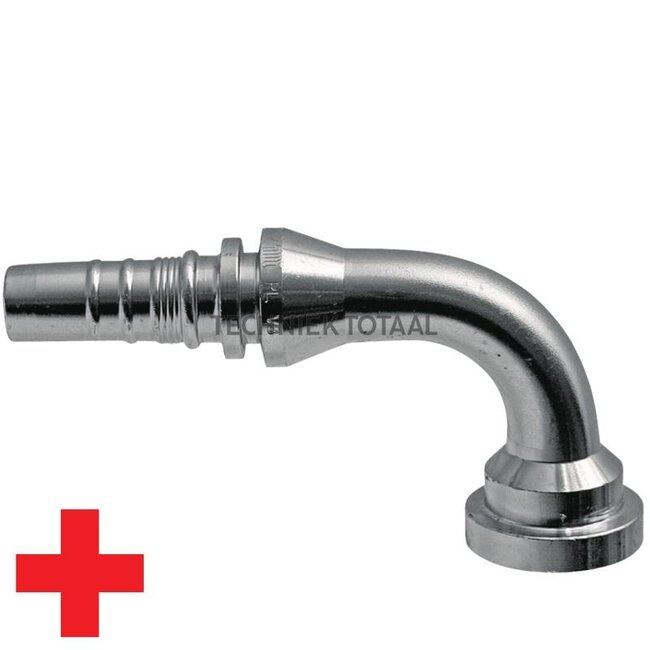

Manuli Swage fitting Interlock heavy SAE flange 1 1/4", 90°, DN 38

Swage fitting INTERLOCK / INTERLOCK PLUS

Replaces: M43690-24-20

Technical data:

• D (inches): 1 1/4”
• Comparison no.: M43690-24-20
• B (mm): 26.0
• D (mm): 54.2
• Nominal width: DN 38 - 1 1/2"
• A (mm): 111.2
• E (mm): 91.0
• O-ring: 37.7 x 3.5
• Type formula: SFS 90°
• Series: 6000 PSI
• Description: SAE flange, heavy, 90°
• Flange: 1 1/4”
