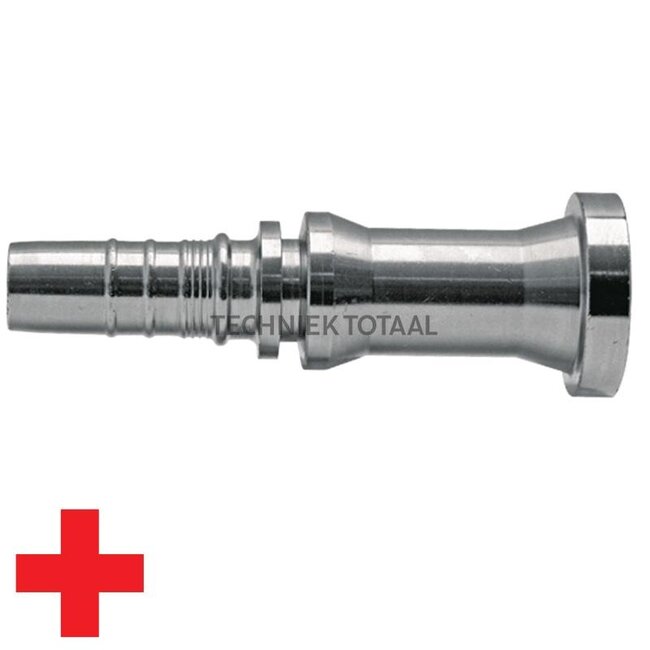

Manuli Swage fitting Interlock heavy SAE flange 1", DN 16

Swage fitting INTERLOCK / INTERLOCK PLUS

Replaces: M43610-10-16

Technical data:

• Series: 6000 PSI
• Nominal width: DN 16 - 5/8"
• Comparison no.: M43610-10-16
• D (mm): 47.7
• A (mm): 81.5
• O-ring: 32.9 x 3.5
• Description: SAE flange, heavy
• Type formula: SFS
• B (mm): 20.0
• D (inches): 1"
• Flange: 1"
