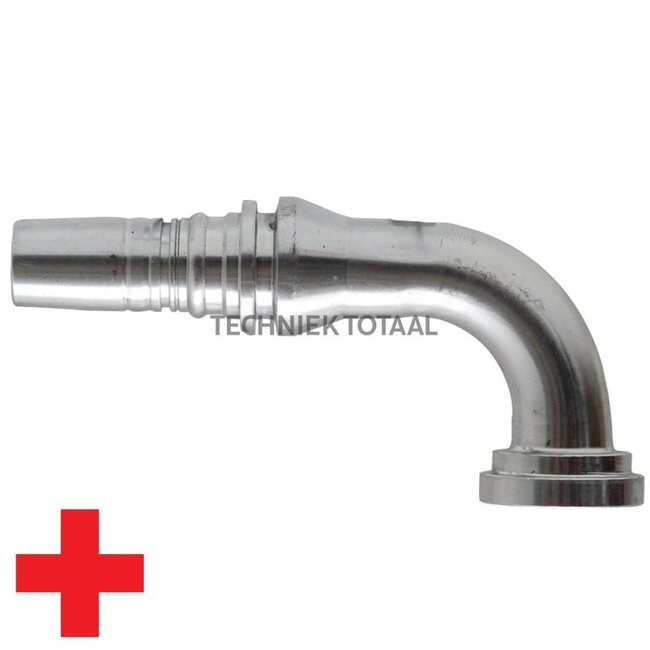

Manuli Swage fitting Interlock heavy SAE flange 1 1/4", 90° E 90 mm, DN 31

Swage fitting INTERLOCK / INTERLOCK PLUS

Replaces: M43690-20-20090

Technical data:

• Description: SAE flange, heavy, 90°
• A (mm): 102
• Nominal width: DN 31 - 1 1/4"
• O-ring: 37.7 x 3.5
• Type formula: SFS 90°
• Series: 6000 PSI
• Comparison no.: M43690-20-20090
• E (mm): 90
• B (mm): 26
• Flange: 1 1/4”
• D (mm): 54.2
• D (inches): 1 1/4”
