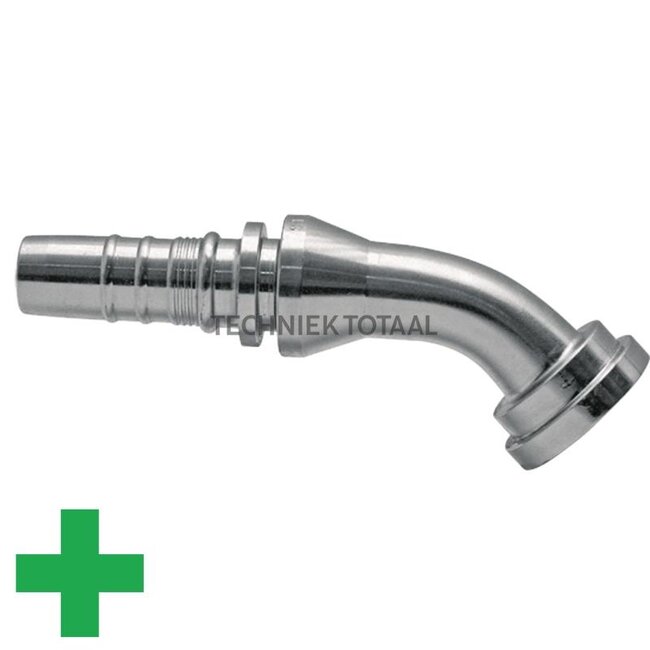

Manuli Swage fitting Interlock light SAE flange 1 1/4", 45°, DN 25

Swage fitting INTERLOCK / INTERLOCK PLUS

Replaces: M43340-16-20

Technical data:

• D (inches): 1 1/4”
• Flange: 1 1/4”
• Nominal width: DN 25 - 1"
• Series: 3000 PSI
• E (mm): 27.3
• Comparison no.: M43340-16-20
• B (mm): 26.0
• A (mm): 87.5
• Description: SAE flange, light, 45°
• D (mm): 51.0
• Type formula: SFL 45°
• O-ring: 37.7 x 3.5
