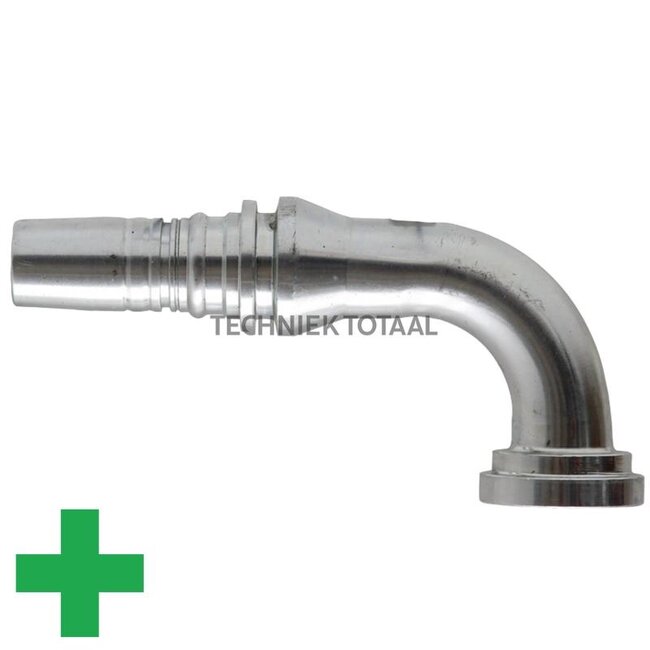

Manuli Swage fitting Interlock light SAE flange 3/4", 90°, DN 19

Swage fitting INTERLOCK / INTERLOCK PLUS

Replaces: M43390-12-12

Technical data:

• B (mm): 16.0
• Description: SAE flange, light, 90°
• Comparison no.: M43390-12-12
• Type formula: SFL 90°
• D (inches): 3/4”
• E (mm): 52.0
• Nominal width: DN 19 - 3/4"
• A (mm): 71.8
• Series: 3000 PSI
• D (mm): 38.0
• O-ring: 25.0 x 3.5
• Flange: 3/4”
